EV DL15W 15 inch Refoam Kit (F15-2)


Fits EV DL15W woofers used in Sentry III models and more.
A – O.D. of the surround = 14.25″
B – Roll ends = 13.5″
C – O.D. of the cone = 12.25″
D – I.D. of the surround = 11.75″


EV DL15W 15 inch Refoam Kit

This kit will fit EV DL15W 15″ woofers that have an angled attachment to cone.
Check for correct dimensions.

Used in Cabinet Models:
– Sentry III and more.

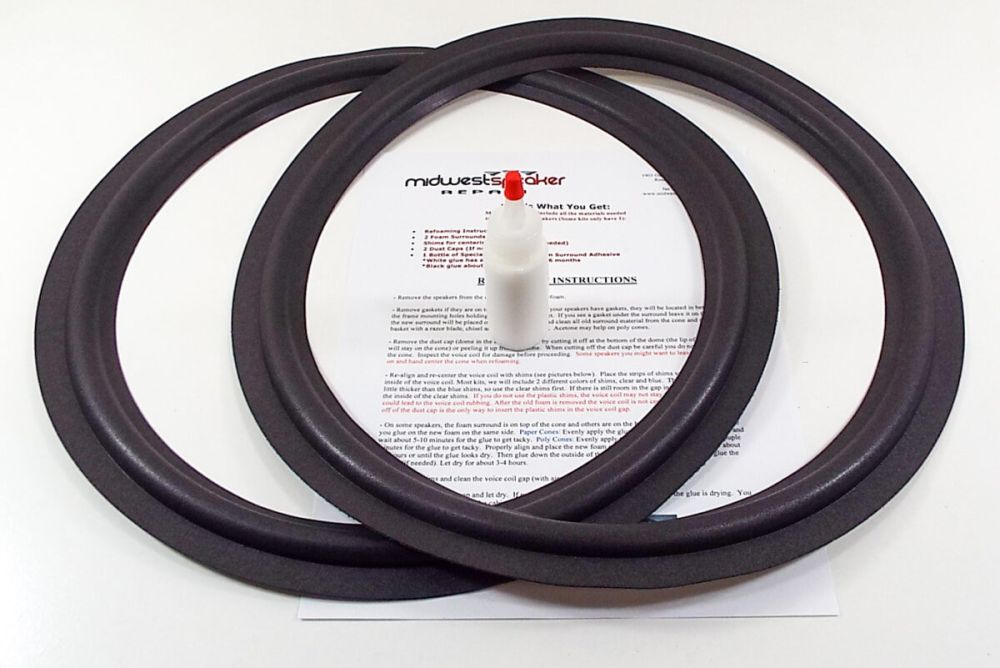

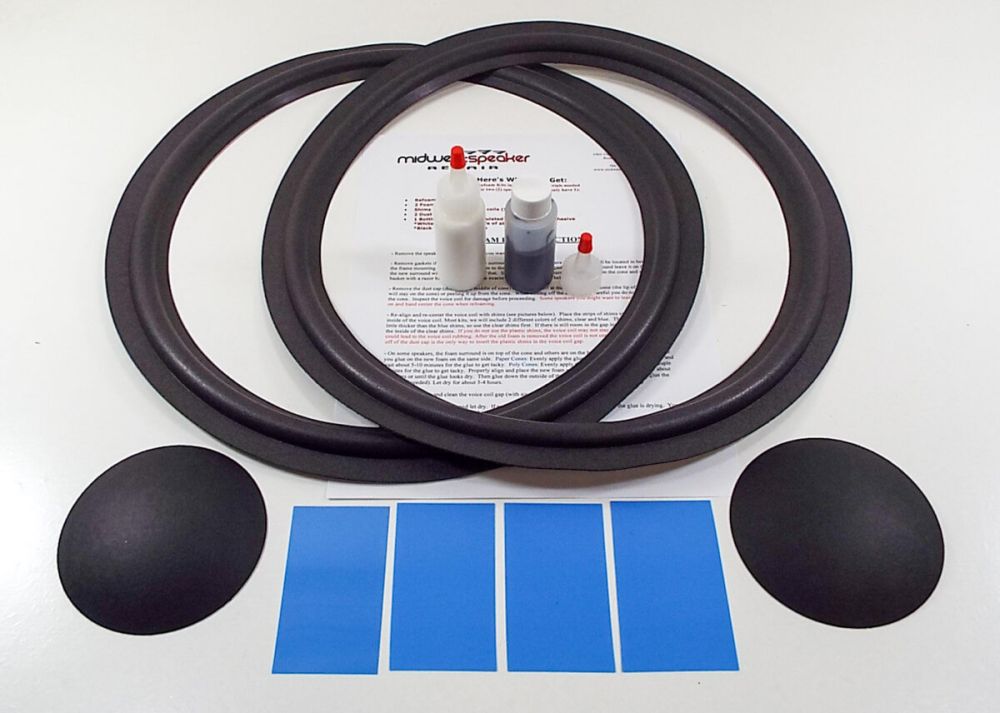

Each Refoam Kit includes all the materials needed to repair two (2) woofers:
– Refoaming Instructions
– 2 Foam Surrounds
– Shims for Centering the 2.4″ Voice Coils (if selected)
– Two 4.124″ Paper Dust Caps (if selected)
– 1 Bottle of Specially Formulated Foam Surround Adhesive (Dries Clear)
– 1 Bottle of Black Dust Cap Glue (if selected)

*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. Also, be careful when cutting off the old dust cap, so you do not cut thru the cone.

A – Outside diameter of the surround = 14.25″
B – Roll ends = 13.5″
C – Roll starts / O.D. of the cone = 12.25″
D – Inside diameter of the surround = 11.75″

Weight 0.66 lbs
Dimensions 16 × 16 × 3 in
Select Dust Cap
