MW Audio MW-5008-8: 8″ Woofer 8 ohm

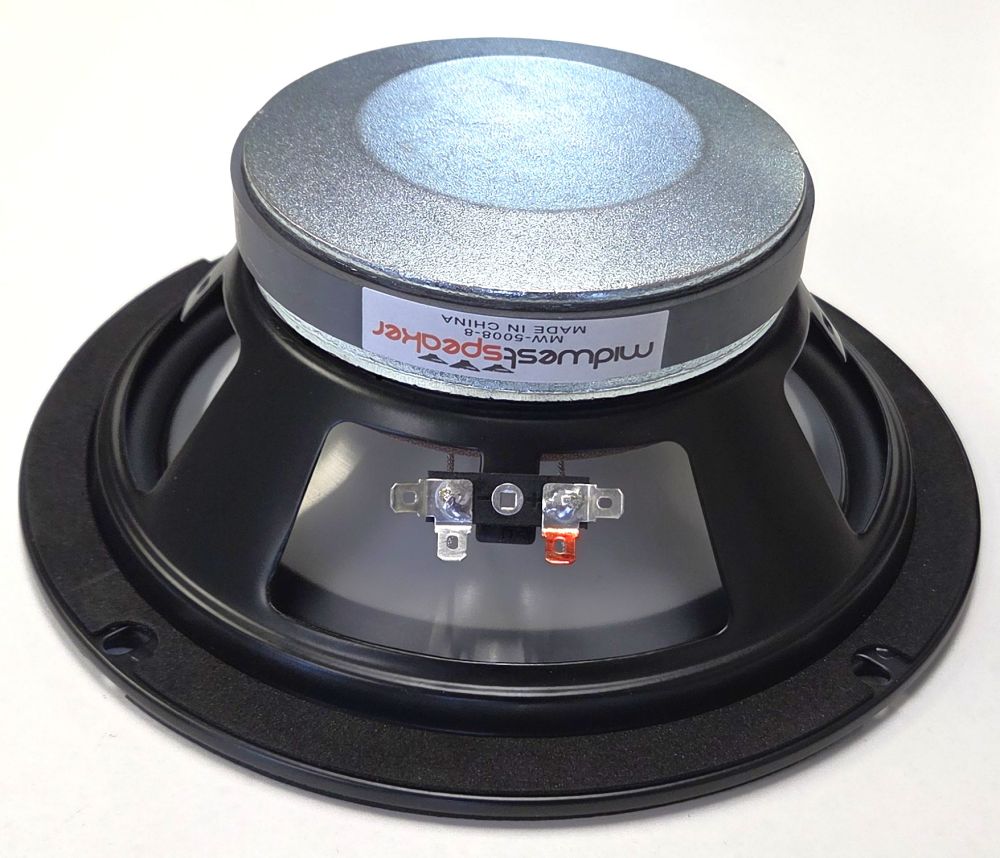

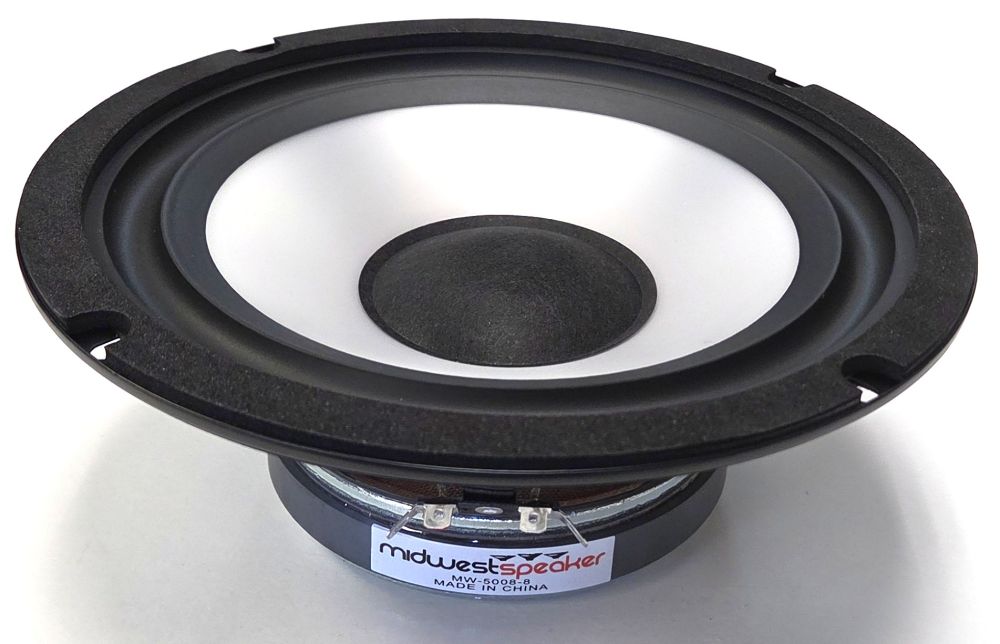

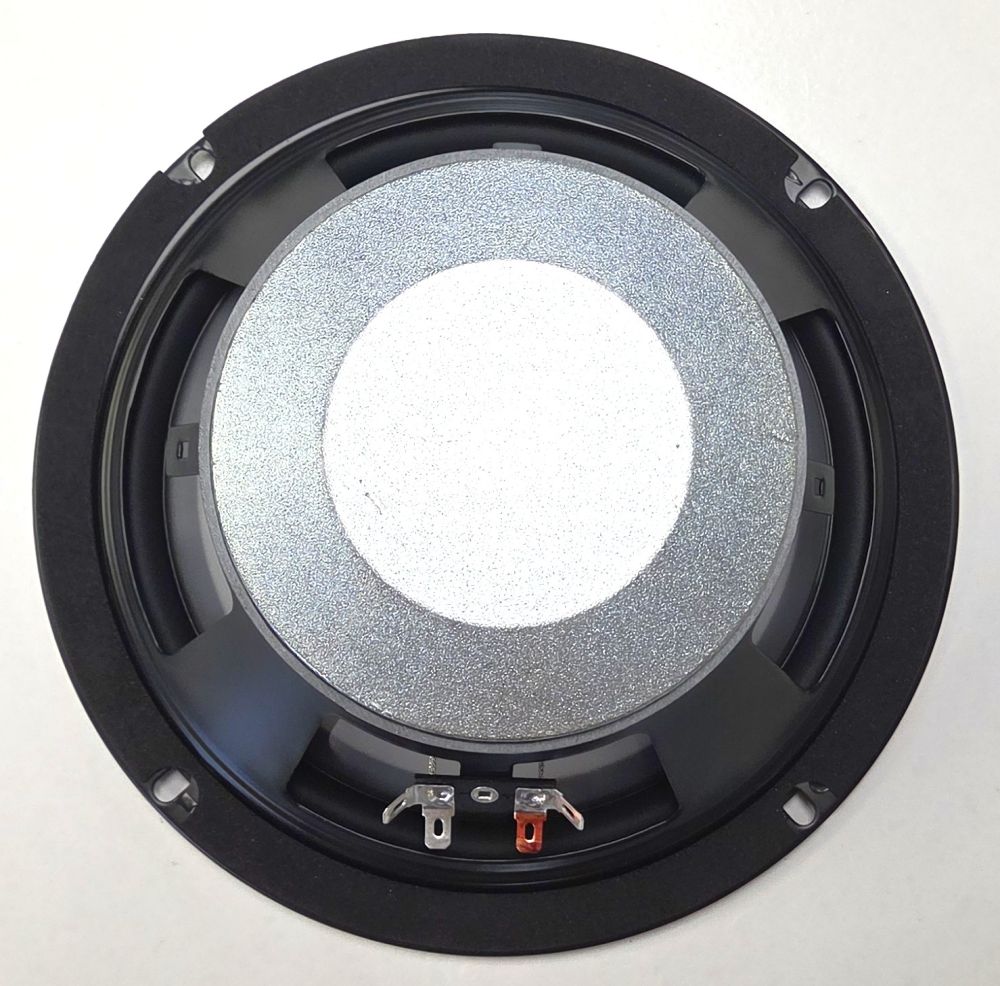

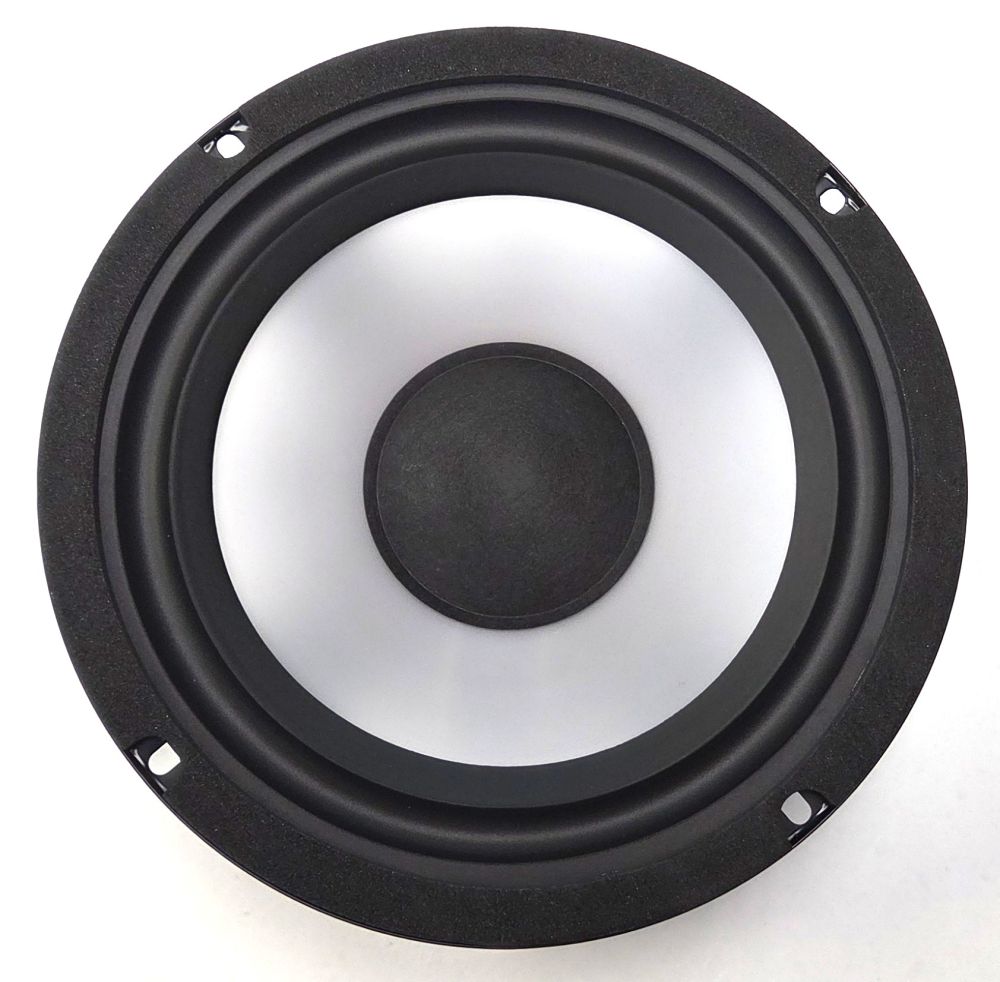

This woofer is a great replacement for many Klipsch models. The screw holes match up perfect and has a stamped steel basket, clear poly cone, rubber surround and a large high power magnet. These are new current production stock. The original Klipsch woofers have been discontinued, so we had these custom made for us designed from the original Klipsch woofer. The specs were copied to ensure similar output level and sound. In comparison to the original, it is very close. Overall, it is a great reproduction of the original Klipsch woofer.
Models include:
– KG4 and more.
Woofer Part #:
– K-8-K
Specifications and Small Signal Parameters:
Voice Coil Impedance: 8 ohm
Voice Coil Diameter: 1.52″
Rated Frequency Response: 28- 7000 Hz
Sensitivity: 90.1 dB SPL (m)
Rated Power: 75 watts
Program Power: 150 watts
Magnet Weight: 580 gr (20.46 oz)
Fs: 28.2 Hz
Re: 7.5 ohm
Qts: 0.276
Qms: 7.887
Qes: .286
Vas: 68.5 liters
Speaker Dimensions:
Outside Diameter: 8.21″
Cutout Diameter: 7.11″
Internal Depth: 2.95″
