JBL 2431H Aftermarket Diaphragm


Fits JBL 2431 and 2431H horn driver models.
8 ohms

Categories: ,

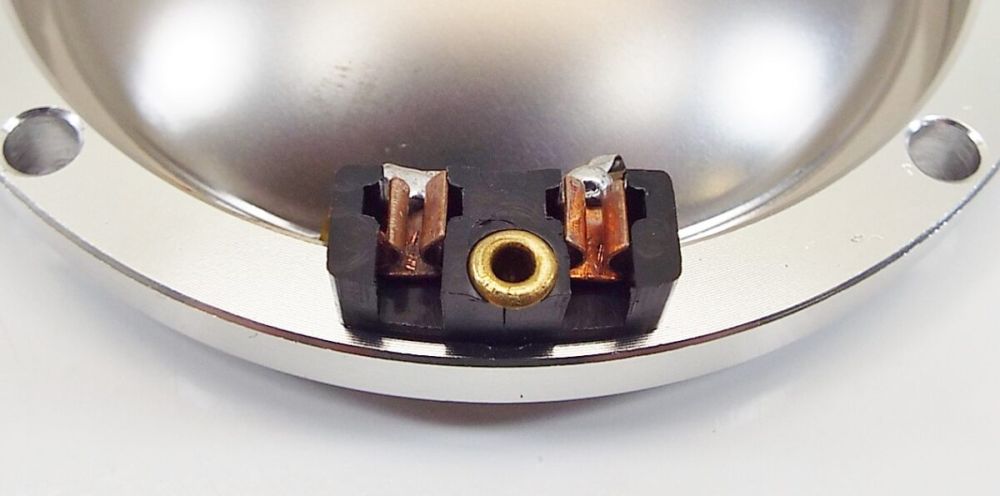

JBL 2431 & 2431H Aftermarket Diaphragm

This is a high quality aftermarket JBL diaphragm that sounds just like the original JBL diaphragm.

Outside Diameter: 3.75″ (95.25mm)
Voice Coil Diameter: 3″ (76.20mm)
Nominal Impedance: 8 ohms
DCR: 4.0 ohms

Here is a list of the driver part #’s:
2431, 2431H and more

Here is the list of some of the cabinet model #’s:
AE Series: AM6200/64-WH, AM6200/95-WH, AM6212/00-WH, AM6212/64-WH, AM6212/95-WH, AM6215/64-WH, AM6215/95-WH, AM6315/64-WH, AM6315/95-WH, AM6340/64-WH, AM6340/95-WH
– Precision Directivity Series: PD5200/43-WH, PD5200/64-WH, PD5200/95-WH, PD5212/43-WH, PD5212/64-WH, PD5212/95-WH, PD5322/43-WH, PD5322/64-WH, PD5322-95-WH, PD743, PD764
– SRX Series: SRX712M, SRX715/F, SRX738/F
– VLA Series: VLA301, VLA301H, VLA601, VLA601H, VLA901, VLA901H
– Vertec Series: VT4888, VT4888DP-AN/CN/DA

We are a JBL factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.

Weight 0.6 lbs
