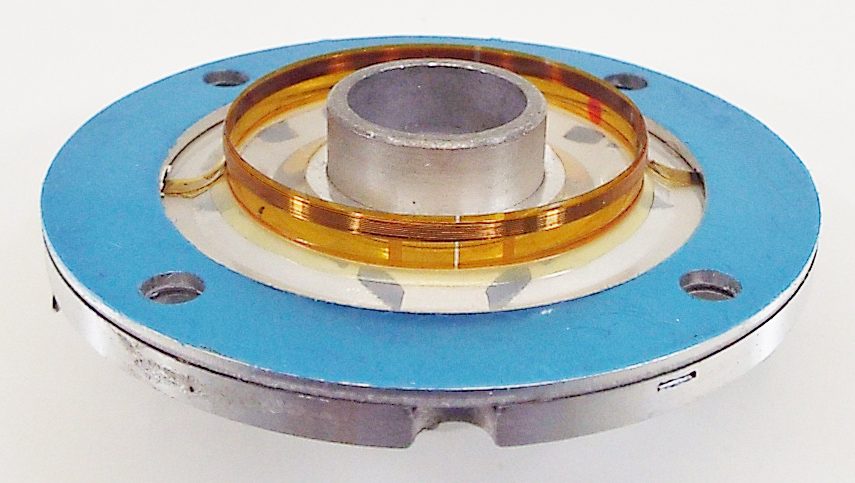

JBL 2408H-1 Aftermarket Diaphragm


Fits JBL 2408H-1 horn driver models.
Will NOT fit the 2408H or 2408H-2.
8 ohms

Categories: ,

JBL 2408H-1 Aftermarket Diaphragm

This is a high quality aftermarket JBL diaphragm that sounds just like the original JBL diaphragm.

Outside Diameter: 2.75″ (69.85mm)
Voice Coil Diameter: 1.5″ (37.9mm)
Nominal Impedance: 8 ohms
DCR: 4.1 ohms
Dome Material: Polymer
Voice Coil: Aluminum Wire

Here is a list of the driver part #’s:
– 2408H-1.  Will NOT fit the 2408H or 2408H-2.

Here is the list of some of the cabinet model #’s:
– AC Series: AC18/26-WH, AC18/26, AC18/95-WH, AC18/95 , AC28/26-WH, AC28/26, AC28/95-WH, AC28/95
– AM Series: AM5212/00-WH, AM5212/26-WH, AM5212/26, AM5212/64-WH, AM5212/64, AM5212/95-WH, AM5212/95, AM5215/26-WH, AM5215/26, -AM5215/26-WH, AM5215/66, AM5215/95-WH, AM5215/95, AM5215/95-WH
– PRX Series: PRX512MI, PRX512MI/230, PRX625, PRX625/230, PRX615M, PRX812

We are a JBL factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.

Weight 0.25 lbs
