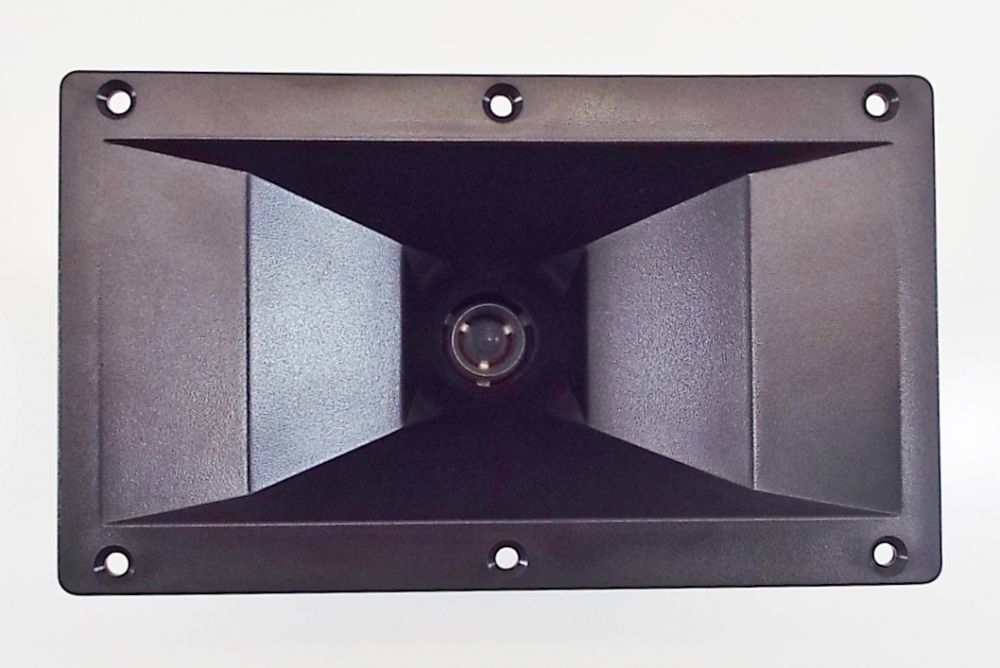

Eminence APT:150 Horn Tweeter
Click Here to Download PDF Spec Sheet
Specs:
Description APT:50 driver with APT:150S Horn Type Constant Directivity
Throat Size: 1″, 25.4mm
Dispersion: 100 x 50
Power Rating: 35 W (AES)
Nominal impedance: 8 Ω
Minimum impedance: 7.7 Ω @ 6 kHz
Sensitivity: 102.4 dB
Resonance: 2.7 kHz
Usable Frequency Range: 3500 Hz – 20 kHz
Low Rec. Crossover: 3.5 kH
Weight: 1.9lbs, 0.86kg
Material: ABS
Dimensions:
W x H x D (in): 7.6″ x 4.5″ x 5.1″
W x H x D (mm): 193 x 114.3 x 129.5mm
Cut Out: 6.7 x 3.4 , 170 x 86 mm
