Rockford 12″ Refoam Kit
This kit will fit some 12″ Rockford subwoofers that have an angled attachment to the cone. Some woofers have paper cones (which uses our white glue) and some woofers are poly (plastic) cones (which use our black poly glue). Check for correct dimensions.
Fits HE2, RFP3212, RFP3412, RFP3812 and more.
Each Refoam Kit includes all the materials needed to repair one (1) sub:
– Refoaming Instructions

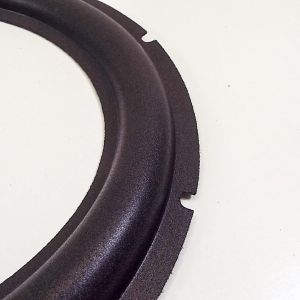

– 1 Foam Surround
– Shims For Centering the Voice Coil (if wanted)
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims in the voice coil gap. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. After the refoam is complete, remove the shims and reglue the original dust cap back down.
*Some Rockford subs the dust caps are to hard to remove and in this case you can try to center it by hand.
A – Outside diameter of the surround = 11.75″
B – Roll ends = 10.875″
C – Roll starts / O.D. of the cone = 8.875″
D – Inside diameter of the surround = 8.25″
