Miller & Kreisel 8″ Single Refoam Kit
This kit will fit M&K 8″ speaker models that have an angled attachment to cone.
Check for correct dimensions.
This kit will fit the M&K cabinet models:
– MX-70, MX-700, VX-7, VX-7 II and more.

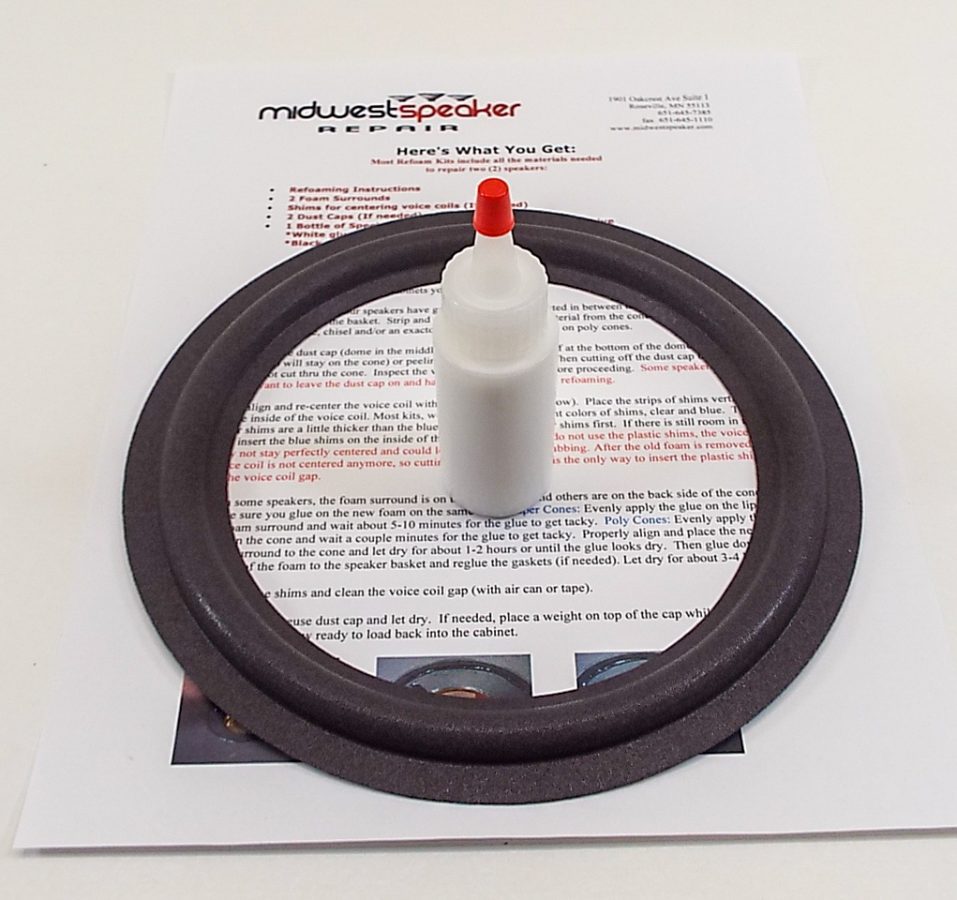

Each Refoam Kit includes all the materials needed to repair one (1) speaker:
– Refoaming Instructions
– 1 Foam Surround (F8-2)
– Shims for Centering the 1.5″ Voice Coils (If selected)
– One 4.5″ Plain Felt Dust Cap. No Logo. (If selected)
– 1 Bottle of Specially Formulated Foam Surround Adhesive (Dries Clear)
*When we refoam this woofer, we cut the original dust cap almost all the way around, but not completely. Then, we flip it up and insert the shims to keep the voice coil centered. When the refoam is complete, we remove the shims and reglue the original dust cap back down.
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. Also, be careful when cutting off the old dust cap, so you do not cut thru the cone.
A – Outside diameter of the surround = 7.75″
B – Roll ends = 6.938″
C – Roll starts / O.D. of the cone = 6″
D – Inside diameter of the surround = 5.5″
Angled attachment to cone
