Mark Levinson 86160-0W210: 10 inch M Roll Refoam Kit
This kit fits Mark Levinson 86160-0W210 speakers. Also fits some Toyota and Lexus speakers. The edge of this foam surround has 2 rolls shaped like the letter M.

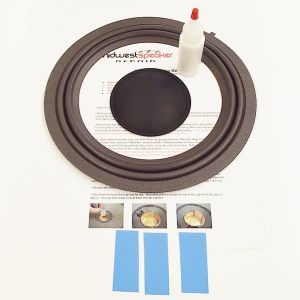

Each Refoam Kit includes all the materials needed to repair one (1) woofer:
– Refoaming Instructions
– 1 Foam Surround
– One 3.95″ Paper Dust Cap
– Shims for Centering the 1.5″ Voice Coil
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*It can difficult to refoam a speaker without removing the dust cap and inserting the plastic shims in the voice coil gap. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
A – Outside diameter of the surround = 10.125″
B – Roll ends = 9″
C – Roll starts / O.D. of the cone = 7.375″
D – Inside diameter of the surround = 6.875″
