Jensen 3.25″ Midrange Refoam Kit
This kit will fit Jensen 3.25″ speaker models that have an angled attachment to the paper cone. Check for correct dimensions.
Model #’s include:
– LS-4, LS-4b, LS-5, LS-5b, LS-6, LS-6b, Model 24, Model 25, Model 30 and many more.

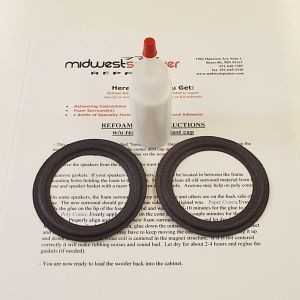

Each Refoam Kit includes all the materials needed to repair two (2) midranges:
– Refoaming Instructions
– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*These speakers are easy to refoam and to center by hand.
A – Outside diameter of the surround = 3.25″
B – Roll ends = 2.875″
C – Roll starts / O.D. of the cone = 2.5″
D – Inside diameter of the surround = 2.23″
