Infinity 5.25″ Refoam Kit
This kit will fit Infinity 5.25″ speaker models that have an angled attachment to cone.
Check for correct dimensions.
Woofer part # 902-5233 Model #’s include:
– Reference EL, SL 10, Sterling SS-2001 and many more models.
Woofer part # 902-5621 Model #’s include:
– Video One (Center Channel) and Sterling Video (Center Channel) many more models.
Woofer part # 902-6136 Model #’s include:
– CS Video, Kappa Video, Kappa Video II (Center Channels) and more models.
Woofer part # 902-6344 Model #’s include:
– RS-125 and many more models.

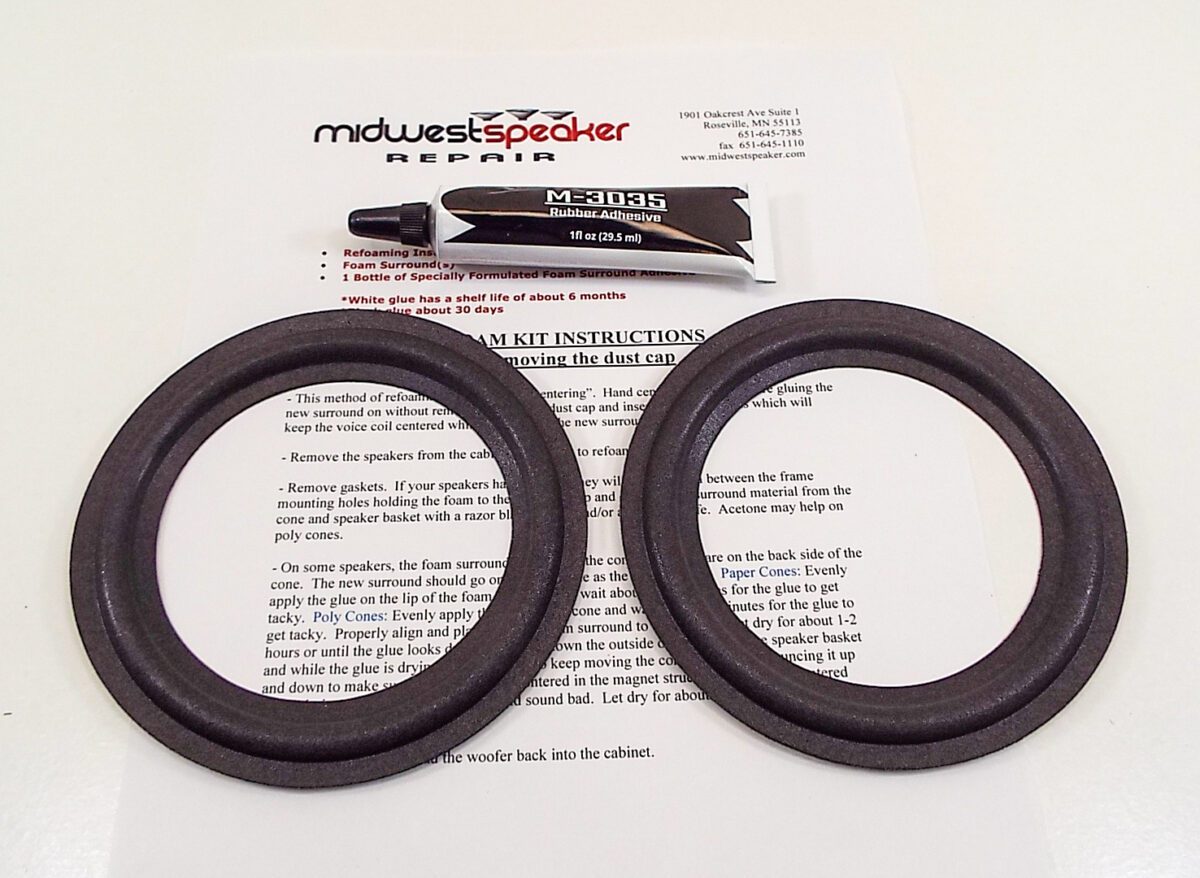

Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions
– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Foam Surround Adhesive (strong and sticky to bond on the poly cones)
*These speakers are easy to refoam and to center by hand. If you prefer to shim the voice coil and use new dust caps, they are available for an additional cost.
A – Outside diameter of the surround = 5.125″
B – Roll ends = 4.69″
C – Roll starts / O.D. of the cone = 3.94″
D – Inside diameter of the surround = 3.5″
