Infinity 5.25″ Refoam Kit
This kit will fit Infinity 5.25″ speaker models that have an angled attachment to cone.
Check for correct dimensions.
– 333510-01 and SM5GCF.
– SM-195, SM-205, SM-215, SM-225, SM-255 (2 mids per cab) and many more models.
Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions

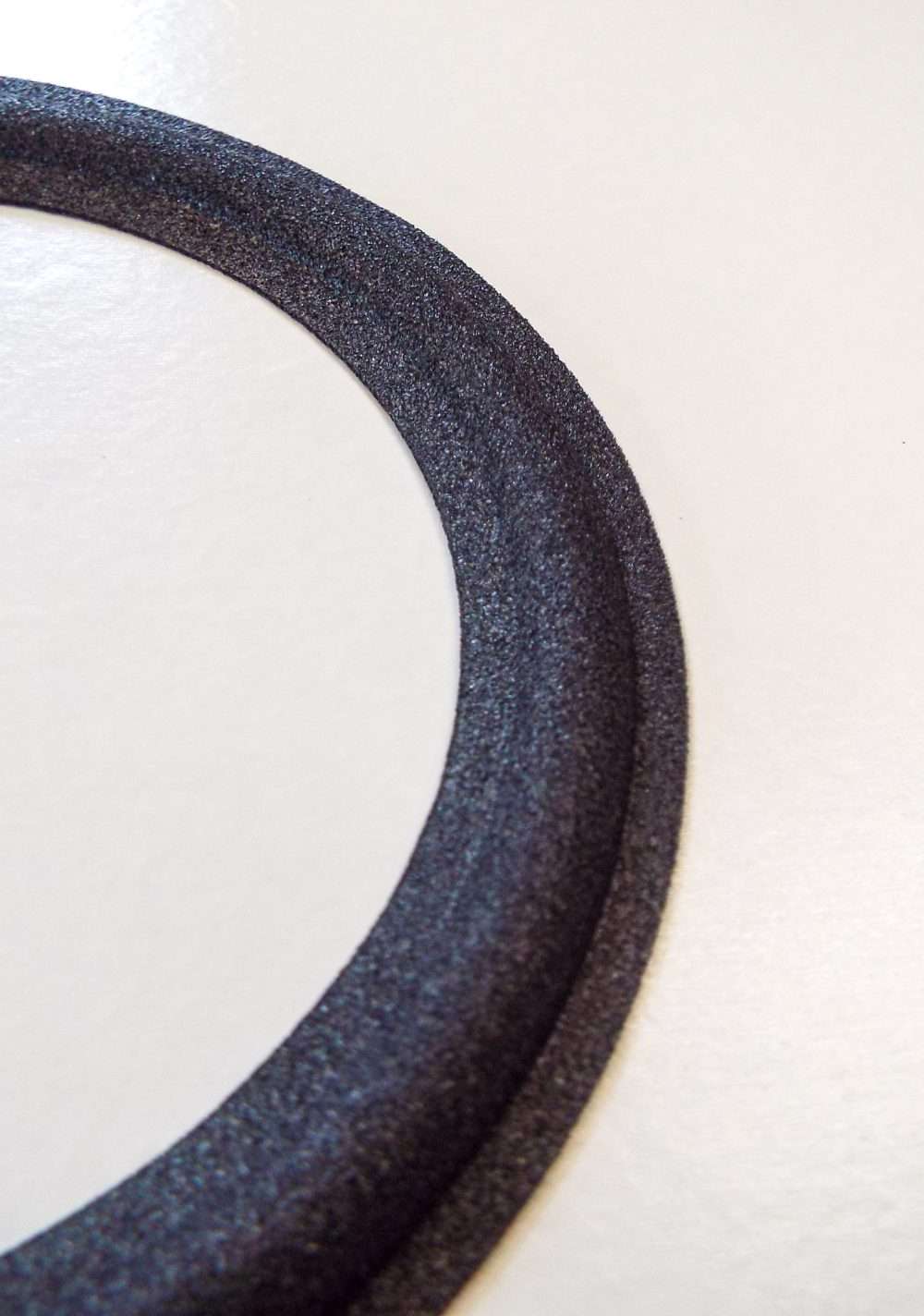

– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*These speakers are easy to refoam and to center by hand.
A – Outside diameter of the surround = 4.85″
B – Roll ends = 4.435″
C – Roll starts / O.D. of the cone = 3.875″
D – Inside diameter of the surround = 3.53″
Angled attachment to the cone
