Infinity 15″ Refoam Kit
This kit will fit Infinity 15″ speaker models that have an angled attachment to cone. These woofers are treated paper cones, which use our white glue. Check for correct dimensions.
Model #’s include:
– SM150, SM152, SM155 and many more.
Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions
– 2 Foam Surrounds
– Shims for Centering the 1.5″ Voice Coils

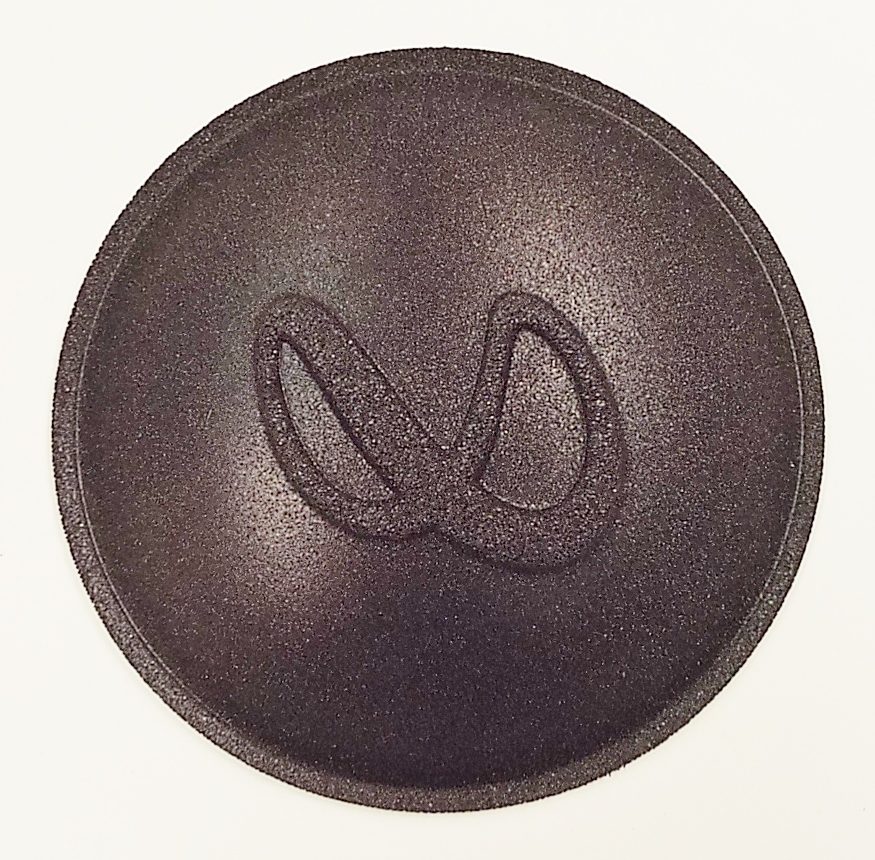

– Two 4.5″ Black Felt Dust Caps (no Infinity logo) or two 4.3″ Infinity Logo Dust Caps
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
A – Outside diameter of the surround = 14.29″
B – Roll ends = 13.53″
C – Roll starts / O.D. of the cone = 12.16″
D – Inside diameter of the surround = 11.748″
