Infinity 10″ Refoam Kit
This kit will fit Infinity 10″ speaker models that have an angled attachment to cone. These surrounds have a slight angle to them and will still fit properly on the cone. These woofers are poly (plastic) cones with the bullet style dust cap, which use our black poly glue.
Check for correct dimensions.
Woofer part #’s include:
– 902-2279, 902-2279A, 902-4983, 490780 and more.
Cabinet models include:
– RSA, RSB, RS II, RS 2A, RS 2B, RS 3A, RS 3B, RS 5B and more.

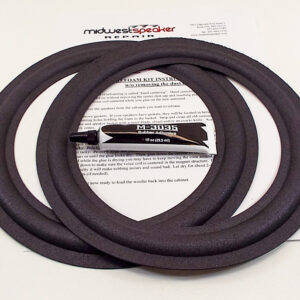

Each Refoam Kit includes all the materials needed to repair two (2) speakers:
– Refoaming Instructions
– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Poly Cone Black Adhesive (Strong and sticky for excellent bond)
*We recommend not shimming the voice coil for this speaker. The bullet style dust cap is sometimes too difficult to remove and you can damage the voice coil if you try. You have to center it by hand.
A – Outside diameter of the surround = 9.625″
B – Roll ends = 8.75″
C – Roll starts / O.D. of the cone = 7.375″
D – Inside diameter of the surround = 6.875″
