ESS AMT-1B / AMT-1C / AMT-1D Refoam Kit
This is the correct kit that fits on the ESS AMT-1B, AMT-1C, AMT-1D and AMT Monitor speaker.

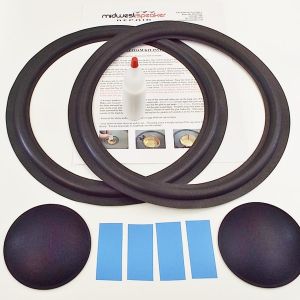

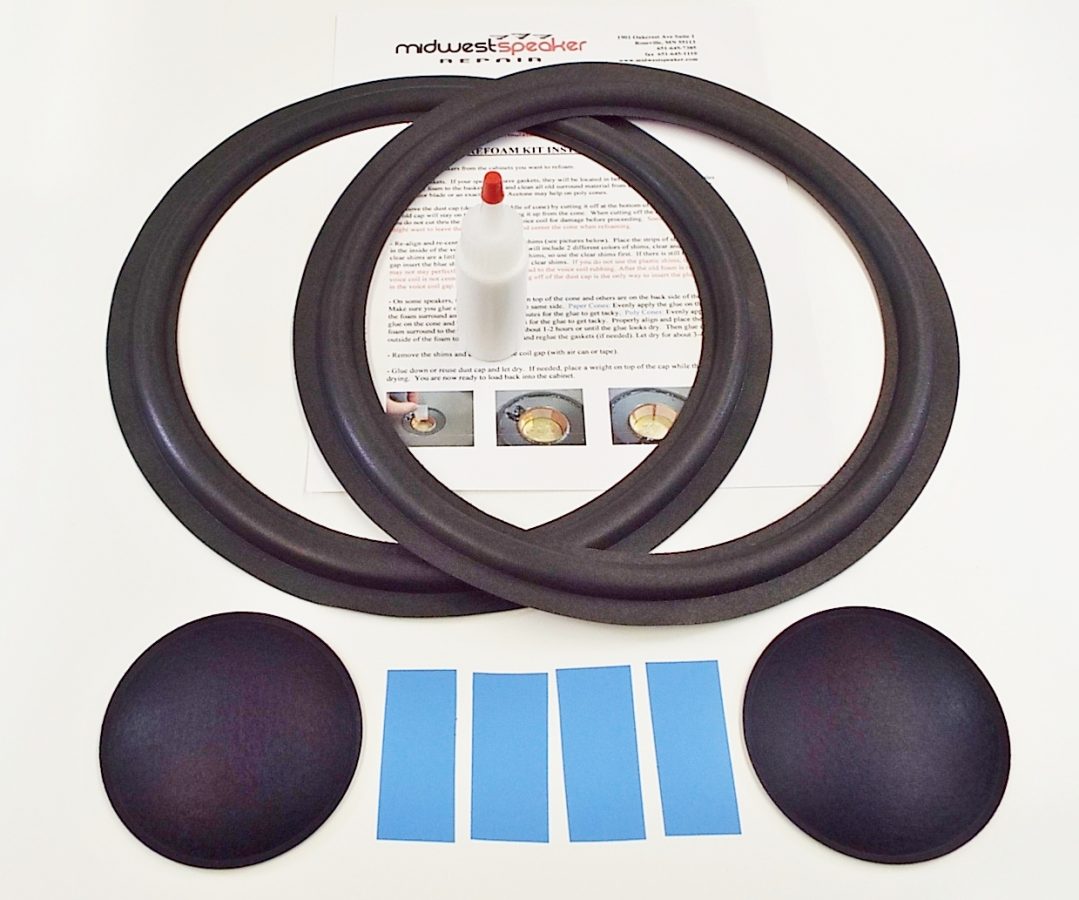

Each Refoam Kit includes all the materials needed to repair two (2) woofers:
– Refoaming Instructions|
– Two 12″ Foam Surrounds (F12-2) Flat attachment
– Shims for centering the 2″ voice coils
– Two 4.5″ Felt Dust Caps
– 1 Tube of Specially Formulated Adhesive (strong and sticky to bond on the poly cones)
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
A – Outside diameter of the surround = 11.5″
B – Roll ends = 10.625″
C – Roll starts / O.D. of the cone = 9.44″
D – Inside diameter of the surround = 9″
