EPI / Epicure 8″ Woofer Foam Surround Kit
This kit will fit the many EPI and Epicure models.
These surrounds have an angled attachment to cone.

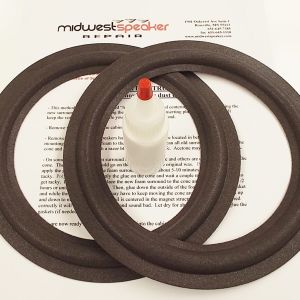

This Repair Kit includes all the materials needed to repair two (2) woofers:
– Repair Instructions
– 2 Foam Surrounds (F8-2)
– Shims for Centering the 1″ Voice Coils (If selected)
– Two 1.9″ Paper Dust Caps (If selected)
– 1 Bottle of Specially Formulated Surround Adhesive
*It can be difficult to replace the surrounds on a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being repaired. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing. Also, be careful when cutting off the old dust cap, so you do not cut through the cone.
A – Outside diameter of the surround = 7.75″
B – Roll ends = 6.938″
C – Roll starts / O.D. of the cone = 6″
D – Inside diameter of the surround = 5.5″
Angled attachment to cone
