B&W ASW1000 12″ Sub Refoam Kit
This kit will fit the B&W ASW1000 12″ powered home audio subwoofer. The roll on our foam surround is a little bit larger then the original, but will still function well.

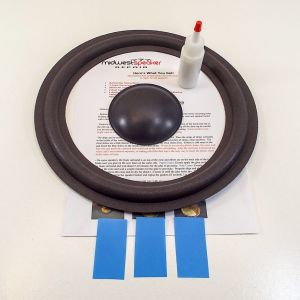

Each Refoam Kit includes all the materials needed to repair one (1) speaker:
– Refoaming Instructions

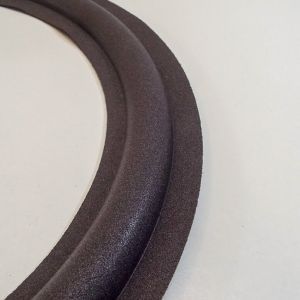

– 1 Foam Surround
– Shims For Centering the 2″ Voice Coil
– One 3.95″ Paper Dust Cap
– 1 Bottle of Specially Formulated Foam Surround Adhesive
*It can be difficult to refoam a speaker without removing the dust cap and inserting the plastic shims. The plastic shims are used to center the voice coil and cone assembly while the speaker is being refoamed. If you do not use the plastic shims, the voice coil may be off center and it may lead to the voice coil rubbing.
A – Outside diameter of the surround = 11.625″
B – Roll ends = 10.625″
C – Roll starts / O.D. of the cone = 9.25″
D – Inside diameter of the surround = 8.5″
Angled attachment to the cone
