Advent 9″ Refoam Kit

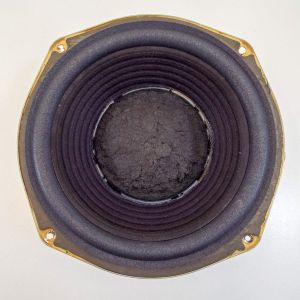

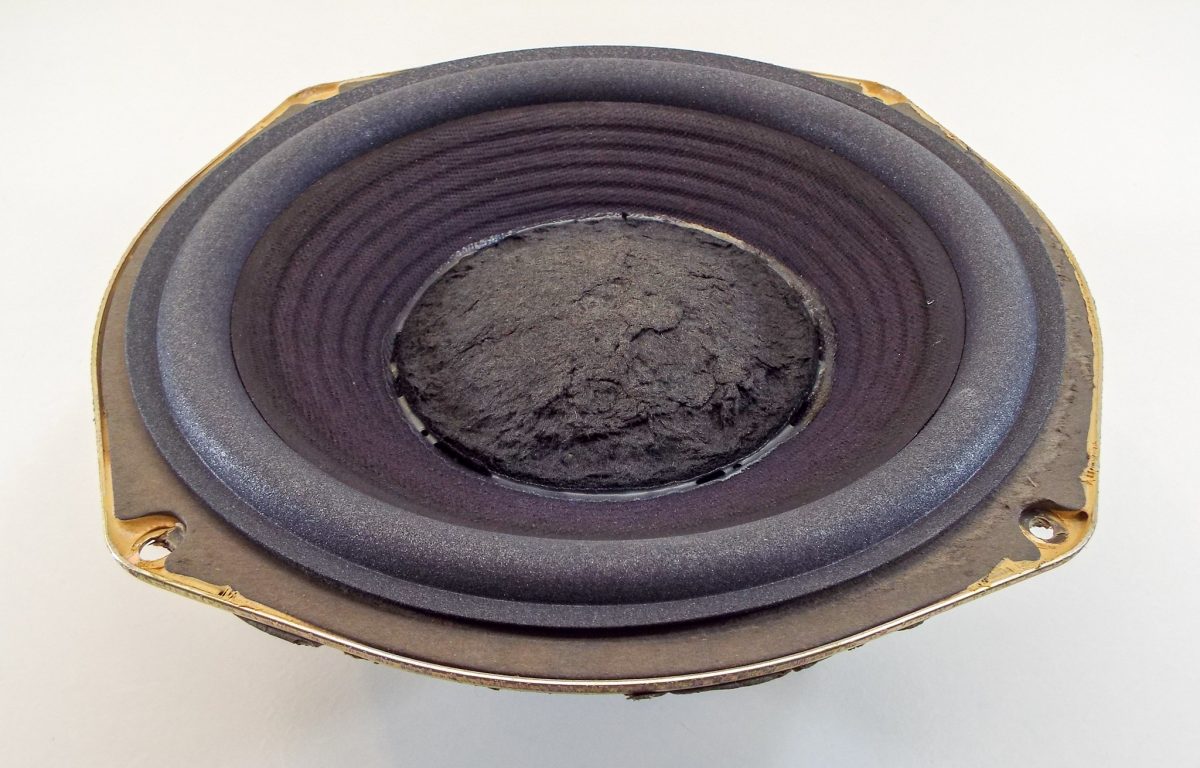

This kit will fit the Advent 9″ speaker models that have a flat attachment to cone. Make sure your woofer looks like the woofer in our picture.
Check for correct dimensions.
Model #’s include:
– “Small”, “Smaller” and more.

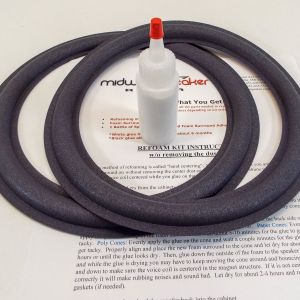

Each Refoam Kit includes all the materials needed to repair two (2) woofers:
– Refoaming Instructions
– 2 Foam Surrounds
– 1 Bottle of Specially Formulated Foam Surround Adhesive
**These woofers have a large thick hard to cut off dust cap. We recommend refoaming these woofers without cutting off the dust cap or using shims. The voice coil sits in a fairly large gap and is easy to refoam by hand centering it. If you still would like to cut off the dust caps and would like shims, let us know and we will send shims with the kit.
A – Outside diameter of the surround = 8.875″
B – Roll ends = 8.31″
C – Roll starts / O.D. of the cone = 7.125″
D – Inside diameter of the surround = 6.625″
