Sale!

Eminence ASD:1001 High Frequency Driver

Price: $39.99 $34.99

Available in Screw-on or Bolt-on Driver
50 watts / 2.5kHz – 20kHz / 104dB
1″ Throat
8 ohms

Clear

Description

ASD:1001 Screw-on or Bolt-on Driver

Click Here to Download PDF Spec Sheet

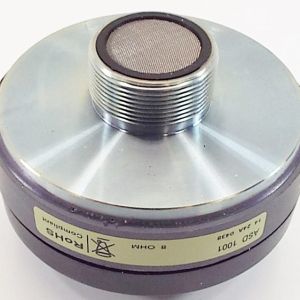

ASD:1001 Screw-on Driver Specs:

SPECIFICATION
Throat Size 1″, 25.4mm
Nominal Impedance*
Minimum Impedance 7.7 ohm @ 3.0 kHz
Power Rating** 50 W (EIA-426A)
Resonance 0.59kHz
Usable Frequency Range 2500Hz-20kHz
Recommended Crossover 2.5 kHz / 18 dBkHz
Sensitivity*** 104.4
Magnet Material Ferrite
Magnet Weight 12oz, 0.34kg
Voice Coil Diameter 1.3″ / 33mm
Voice Coil Former Aluminum
Diaphragm Material Titanium
DC Resistance (Re) 6.7Ω
MOUNTING INFORMATION
Overall Diameter 3.5″, 88.9mm
Driver Volume Displaced 0.009 cu.ft., 0.26 liters
Depth 2.45″, 62.2mm
Weight 1.7 lbs, 0.8 kg
Mounting Thread 1 3/8 in. 18 ext.

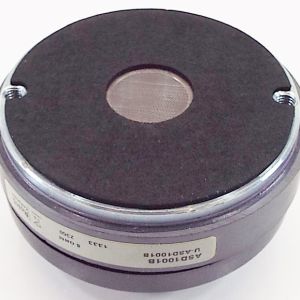

ASD:1001B Bolt-on Driver Specs:

Click Here to Download PDF Spec Sheet

SPECIFICATION
Throat Size 1″, 25.4mm
Nominal Impedance*
Minimum Impedance 7.6 ohm @ 2.3 kHz
Power Rating** 50 W (EIA-426A)
Resonance 0.59kHz
Usable Frequency Range 2500Hz-20kHz
Recommended Crossover 2.5 kHz / 18 dBkHz
Sensitivity*** 104.1
Magnet Material Ferrite
Magnet Weight 12oz, 0.34kg
Voice Coil Diameter 1.3″ / 33mm
Voice Coil Former Aluminum
Diaphragm Material Titanium
DC Resistance (Re) 6.7Ω
MOUNTING INFORMATION
Overall Diameter 3.5″, 88.9mm
Driver Volume Displaced 0.009 cu.ft., 0.26 liters
Depth 2″, 50.8mm
Weight 1.7 lbs, 0.8 kg
Mounting Thread N/A
Mounting Holes Diameter 2X M6
Mounting Holes B.C.D. 3 in. 76.2 mm
