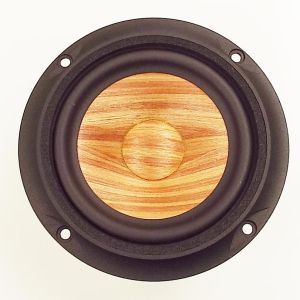

MW Audio MW-7050-8: 5 inch Wood Cone Shielded Woofer


40 watts / 78-12,000 Hz / 1″ voice coil
8 ohms


MW Audio MW-7050-8: 5″ Wood Cone Shielded Woofer

This woofer has an amazing warm detailed sound. The thin wood cone is light weight like a carbon fiber cone, but has the warm clear sound of a paper cone. The best of both worlds. This cone will bring out tones and sounds that other cones can’t produce. Ideal for classical, jazz, orchestra and any type of music which uses wood and horn instruments. Replace your existing woofers or build your own cabinets. Features a cast aluminum frame, 1″ voice coil, large ceramic shielded magnet and a rubber surround.


Specs and Small Signal Parameters:

Voice Coil Impedance: 8 ohm

Rated Frequency Response: 78- 12k Hz

Sensitivity: 87.8 dB SPL 1 watt/1 meter

Rated Power: 40 watts

Program Power: 80 watts

Magnet Weight: gr (11.1 oz)

Fs: 78.927 Hz

Re: 6.2 ohm

Qts: .511

Qms: 3.538

Qes: .597

Vas: 4.707 liters

Xmax: 2 mm

No: .375%


Outside Diameter: 4.9″ (124.5mm)

Cutout Diameter: 4″ (101.6mm)

Weight 4 lbs
