MW Audio MT-4013: .5 inch Dome Tweeter

Price: $9.95

Good replacement for some JBL, Infinity and many more speakers.
OD: 2.91″
25 watts / 2500-20,000 Hz / 86 dB
8 ohms

Bulk Product Offers

Min BuyMax BuyOffer
4 Items - 5 % Discount
SKU: MT-4013 Categories: , ,

Description

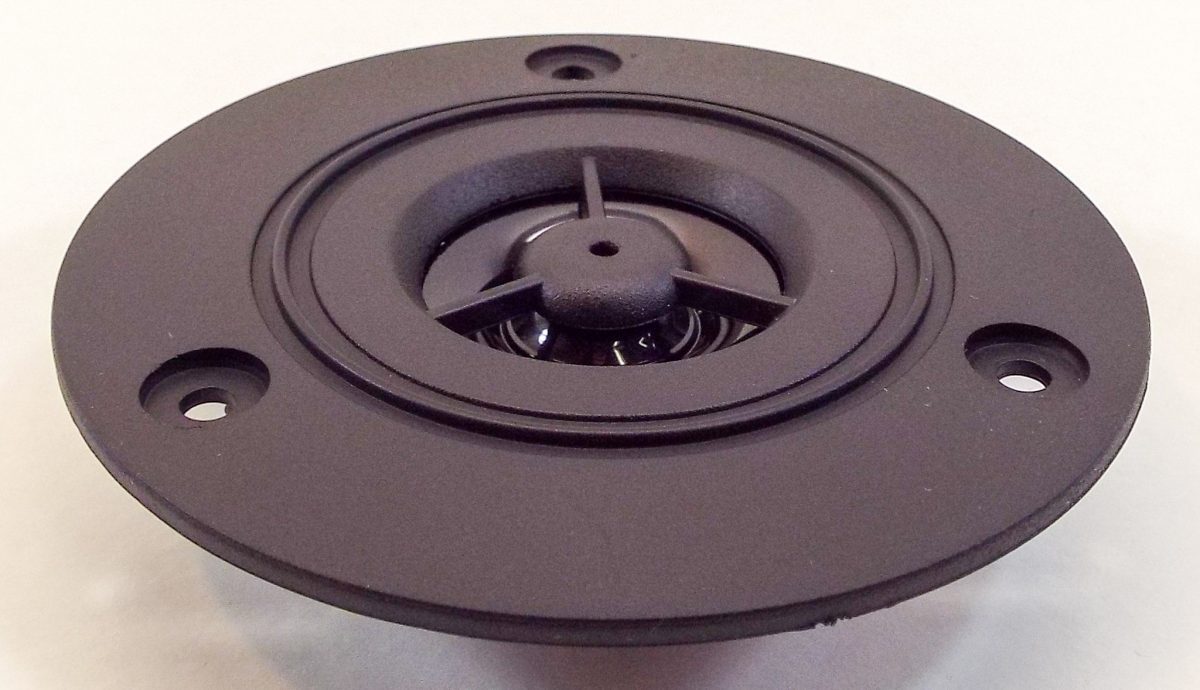

MW Audio MT-4013:  .5″ Mylar Dome Tweeter

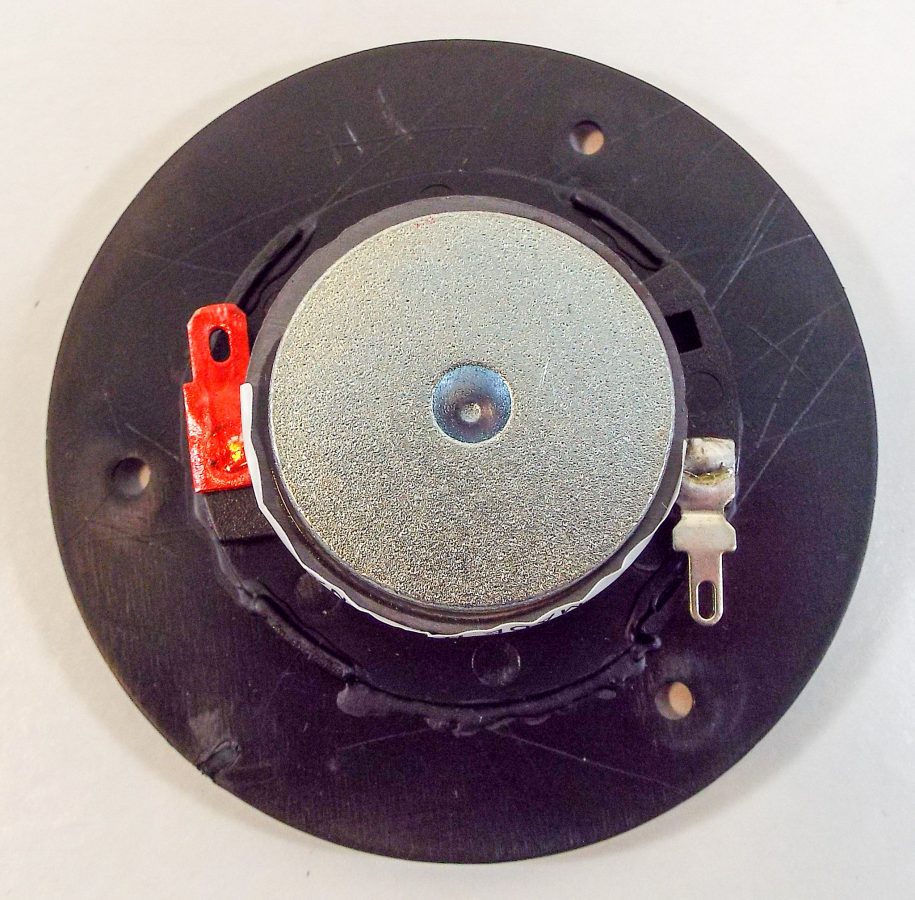

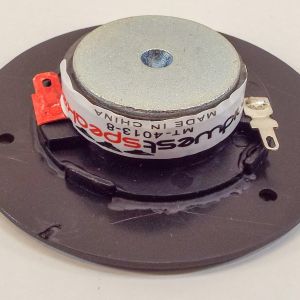

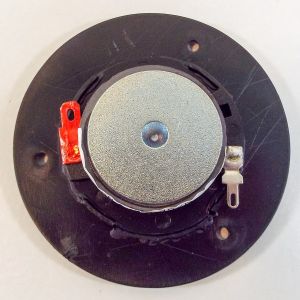

Very common replacement used in many speakers. Note that this tweeter has a large terminal for the positive and a small terminal for the negative. Lots of similar tweeters both terminals are the smaller size, so we will include a new connector to install on your wire just in case you need it.

Good replacement for these makes/models:
– Infinity: 902-5226, Reference E-L, Reference E-L Video, RS11, RS125, RS1001, SL10, SS2001, SS2002
– JBL: 73959, G100 and G400

Specs:
Freq Range: 2500-20,000 Hz
Fs: 2500 Hz
Power Rating: 25 Watts
Impedance: 8 ohms
Re: 7.2 ohms
Sensitivity: 86 dB
Voice Coil Diameter: .5″ (12.5mm)
Magnet Weight: 16.15 g

Dimensions:
Outside: 2.91″ (74mm)
Cutout: 1.9″ (48mm)
