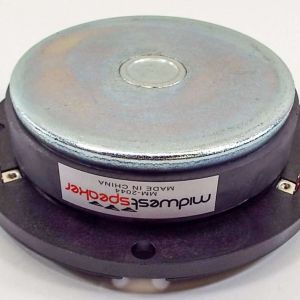

MW Audio MM-2044: Acoustic Research Copy Midrange

Price: $114.95

Good replacement for AR9 models, AR90, AR92, AR-58S.  Will also work for AR3 models and many more.
100 watts / 450-10,000 Hz / 85 dB
4 ohms

SKU: MM-2044 Categories: , ,

Description

MW Audio MM-2044: Acoustic Research Copy Midrange

This is a popular replacement midrange that fits many AR models.  The specs and parameters were copied from the 200044-0  1.5″ dome midrange from the AR9 models to ensure similar sound and physical fit. Same impedance (4 ohms), face plate and screw holes, so you do not have to modify the cabinet at all.  The terminals are on the bottom, so the models that have the wires on the top of the face plate need to be wired to the inside of the cabinet.  Below is a list of models that the mids will work well in.

 Acoustic Research speaker models:
– AR9 models, AR90, AR92, AR-58S.  Will also work for AR3, AR3a, AR11, AR10Pi and many more (still gathering info).

Specs:
Freq Range: 450-10,000 Hz
Fs: 400 Hz
Power Rating: 100 Watts
Impedance: 4 ohms
Re: 3.2 ohms
Sensitivity: 85 dB
Voice Coil Diameter: 1.5″ (38.5mm)
Magnet Weight: 1905.75 g / 4.2 lbs / 67.22 oz
Dome Material: Silk
Frame Material: ABS

Dimensions:
Outside: 5.69″ (144.53mm)
Cutout: 4.5″ (115mm)
Mounting Depth: 5.25″ (133.4mm)
