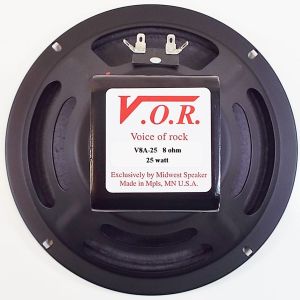

VOR V8A-25: 8 inch Alnico Guitar Speaker
We (Midwest Speaker) have been working with an independent manufacturer, to develop a number of specialty pieces, ranging from home HIFI to musical instrument speakers. They are one of the largest independent manufacturer of all types of drivers for all types of speaker designers all over the world. We went to them and requested a Jensen P8R copy and this is what they created.
This driver is truly exceptional! It far surpasses the tonal quality of the reissue Jensen P8R. This style of driver, I usually rebuild myself, out of reclaimed Zenith drivers and the like from old hifi consoles, to get the quality of tone I like, but this one does it right out off the assembly line, which by the way, is all hand built in the USA.
This is a great replacement for Fender Champs (Blackface models going forward, will not physically fit in the earlier tweed models) and the Jensen P8R or any 8″ guitar speaker.
Nominal Impedance: 4 or 8 ohms
Power Rating: 25 Watts
Usable Frequency Range: 70Hz-8kHz
Voice Coil Diameter: 1″
Voice Coil Former: Nomex
Cone: Vintage Felted Paper Cone
Magnet: Vintage Alnico
Magnet Weight: 7 oz.
Outside Diameter: 8.2″ (208.28mm)
Cutout Diameter: 7.25″ (184.15mm)
Internal Depth: 4.8″ (121.92mm)
