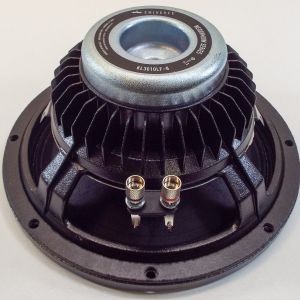

Eminence KL3010LF-8: 10 inch Neodymium Woofer

Price: $224.99 $214.99

High power subwoofer recommended for vented and horn loaded enclosures.
450 watts / 42-1.6kHz / 3″ voice coil
8 ohms
Die-cast aluminum basket
Neodymium Magnet. Only 7.1 lbs!

Description

Eminence KL3010LF-8: 10 inch Neodymium Woofer

High power subwoofer recommended for vented and horn loaded enclosures.

Click Here to Download 8 ohm PDF Spec Sheet

Click Here to Download 8 ohm PDF Cabinet Design

SPECIFICATION
Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 900 W
Watts 450 W
Resonance 45 Hz
Usable Frequency Range 42 Hz – 1.6 kHz
Sensitivity* 92 dB
Magnet Weight 11 oz.
Gap Height 0.365″, 9.3 mm
Voice Coil Diameter 3″, 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 45 Hz
DC Resistance (Re) 7.03 Ω
Coil Inductance (Le) 0.87m H
Mechanical Q (Qms) 0.95
Electromagnetic Q (Qes) 0.33
Total Q (Qts) 0.31
Compliance Equivalent Volume (Vas) 47.33 liters / 1.67 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 321.1 cc
Mechanical Compliance of Suspension (Cms) 0.24 mm/N
BL Product (BL) 17.98 T-M
Diaphragm Mass Inc. Airload (MMs) 53 grams
Efficiency Bandwidth Product (EBP) 137
Maximum Linear Excursion (Xmax) 8.52 mm
Surface Area of Cone (Sd) 376.9 cm2
Maximum Mechanical Limit (Xlim) 15.7 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented Acceptable
Driver Volume Displaced 0.037 cu.ft. / 1.06 liters
Overall Diameter 10.25″, 260.4 mm
Baffle Hole Diameter 9.12″, 231.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.29″, 7.2mm
Mounting Holes B.C.D. 9.73″, 247.1mm
Depth 4.88″, 123.8 mm
Net Weight 7.1 lbs, 3.22 kg
Shipping Weight 8.9 lbs, 4.04 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Vented core
Basket Materials Die-cast aluminum basker
Cone Composition Treated paper cone
Cone Edge Composition Sealed cloth edge
Dust Cap Composition Treated paper dust cap
