Sale!

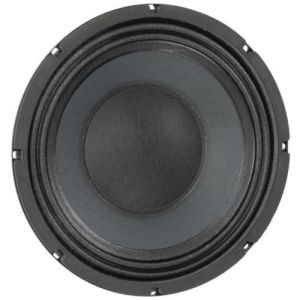

Eminence Basslite S2010: 10 inch Neo Bass Guitar Speaker

Price: $109.99 $99.99

Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures.
150 watts / 54-3kHz / 2″ voice coil
8 ohms
Neodymium Magnet
Only 3.5 lbs!

SKU: Basslite S2010 Categories: , , ,

Description

Eminence Basslite S2010: 10 inch Bass Guitar Speaker Neodymium Magnet

Recommended for bass guitar. Ideal in vented 1X, 2X, and 4 X10 enclosures.

Click Here to Download PDF Spec Sheet

Click Here to Download PDF Cabinet Design

SPECIFICATION
Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 300 W
Watts 150 W
Resonance 46 Hz
Usable Frequency Range 54 Hz – 3 kHz
Sensitivity* 96.2 dB
Magnet Weight 4 oz.
Gap Height 0.28″, 7.1 mm
Voice Coil Diameter 2″, 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 46 Hz
DC Resistance (Re) 5.02 Ω
Coil Inductance (Le) 0.47m H
Mechanical Q (Qms) 4.16
Electromagnetic Q (Qes) 0.34
Total Q (Qts) 0.31
Compliance Equivalent Volume (Vas) 63.4 liters / 2.24 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 140 cc
Mechanical Compliance of Suspension (Cms) 0.36 mm/N
BL Product (BL) 11.9 T-M
Diaphragm Mass Inc. Airload (MMs) 33 grams
Efficiency Bandwidth Product (EBP) 135
Maximum Linear Excursion (Xmax) 4 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented Acceptable
Driver Volume Displaced 0.03 cu.ft. / 0.84 liters
Overall Diameter 10.08″, 256 mm
Baffle Hole Diameter 9.18″, 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.25″, 6.4mm
Mounting Holes B.C.D. 9.66″, 245.4mm
Depth 4.25″, 108 mm
Net Weight 3.5 lbs, 1.59 kg
Shipping Weight 4.6 lbs, 2.09 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition felt dust cap
