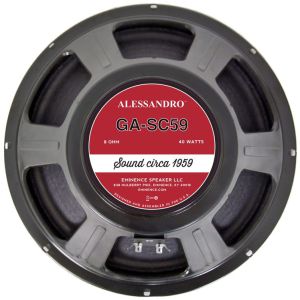

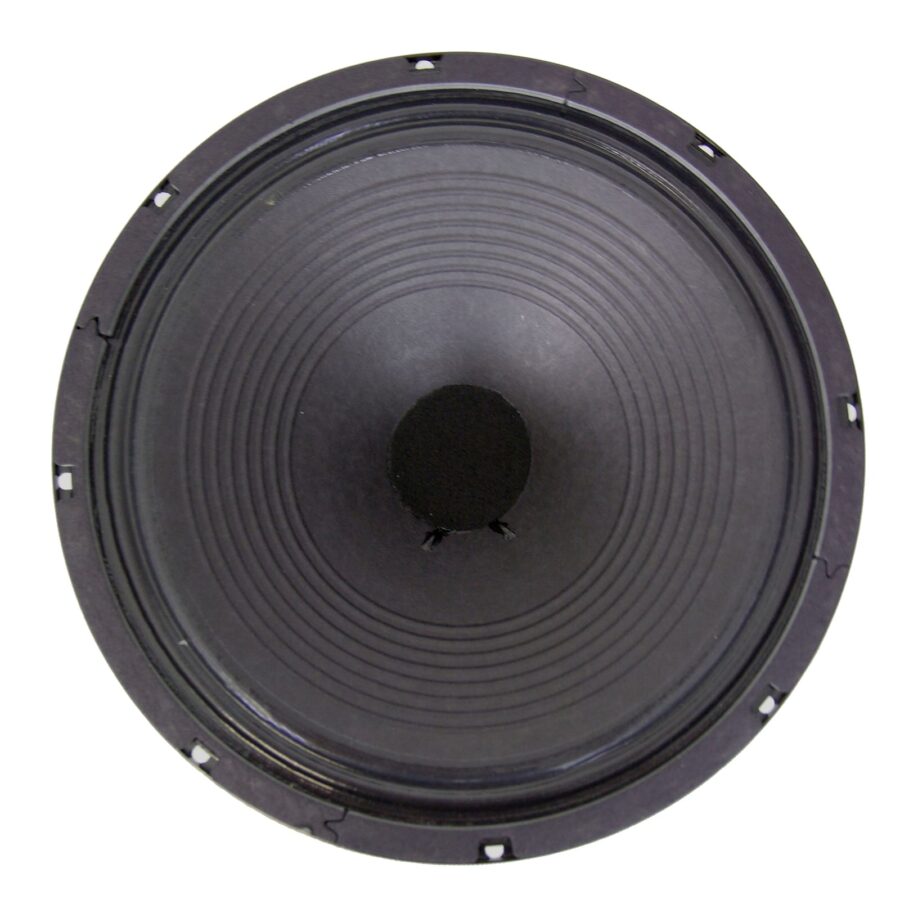

Eminence GA-SC59: 12″ Alnico Guitar Speaker by George Alessandro

Price: $279.99 $269.99

Circa 1959 tone in a vintage American alnico magnet design, approved by George Alessandro. Punchy lows, full lower mid grunt, and articulate chimey highs balance out this versatile and musical 12” speaker.
40 watts / 80-5.2kHz / 1.75″ voice coil
8 ohms

SKU: GA-SC59 Categories: , , ,

Description

Eminence GA-SC59: 12″ Alnico Guitar Speaker by George Alessandro

Circa 1959 tone in a vintage American alnico magnet design, approved by George Alessandro. Punchy lows, full lower mid grunt, and articulate chimey highs balance out this versatile and musical 12” speaker.

Click Here to Download PDF Spec Sheet

SPECIFICATION
Nominal Basket Diameter 12″, 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 40 W
Resonance 89 Hz
Usable Frequency Range 80 Hz – 5.2 kHz
Sensitivity* 100 dB
Magnet Weight 35 oz.
Gap Height 0.313″, 7.95 mm
Voice Coil Diameter 1.75″, 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 89 Hz
DC Resistance (Re) 7.4 Ω
Coil Inductance (Le) 0.61m H
Mechanical Q (Qms) 19.73
Electromagnetic Q (Qes) 0.63
Total Q (Qts) 0.61
Compliance Equivalent Volume (Vas) 41.21 liters / 1.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 83.64 cc
Mechanical Compliance of Suspension (Cms) 0.11 mm/N
BL Product (BL) 13.55 T-M
Diaphragm Mass Inc. Airload (MMs) 28 grams
Efficiency Bandwidth Product (EBP) 140
Maximum Linear Excursion (Xmax) 1.61 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) 0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.079 cu.ft. / 2.24 liters
Overall Diameter 12.17″, 309.12 mm
Baffle Hole Diameter 11.13″, 282.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.24″, 6.096mm
Mounting Holes B.C.D. 11.75″, 298.45mm
Depth 6.25″, 158.75 mm
Net Weight 8.4 lbs, 3.81 kg
Shipping Weight 10.2 lbs, 4.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice Coil
Coil Former Paper former
Magnet Composition Alnico Magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap
