LEGEND 1058 / 10516: 10 inch Guitar Speaker
The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.
Click Here to Download 8 ohm PDF Spec Sheet
Click Here to Download 16 ohm PDF Spec Sheet
LEGEND 1058 Specs:
Nominal Basket Diameter 10″, 254mm
Nominal Impedance* 8 ohms
Power Rating Watts 75W
Music Program
Resonance 97Hz
Usable Frequency Range 100Hz-6kHz
Sensitivity*** 98.7
Magnet Weight 16 oz.
Gap Height 0.25″, 6.35mm
Voice Coil Diameter 1.5″, 38.1mm
Thiele & Small Parameters:
Resonant Frequency (fs) 97Hz
DC Resistance (Re) 7.49
Coil Inductance (Le) 0.56mH
Mechanical Q (Qms) 17.78
Electromagnetic Q (Qes) 1.21
Total Q (Qts) 1.13
Compliance Equivalent Volume (Vas) 26.4 liters / 0.9 cu.ft.
Mechanical Compliance of Suspension (Cms) 0.16mm/N
BL Product (BL) 8.0 T-M Diaphram Mass inc.
Airload (Mms) 17 grams
Efficiency Bandwidth Product (EBP) 80
Maximum Linear Excursion (Xmax) 0.0mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim)
Mounting Information:
Recommended Enclosure
Sealed Acceptable
Vented Acceptable
Overall Diameter 10.11″, 256.8mm
Baffle Hole Diameter 9.13″, 231.8mm
Front Sealing Gasket fitted as standard
Rear Sealing Gasket fitted as standard
Mounting Holes Diameter 0.23″, 5.7mm
Mounting Holes B.C. D. 9.6″, 243.8mm
Depth 4.1″, 104mm
Net Weight 4.4 lbs., 2 kg
Shipping Weight 5.4 lbs., 2.5 kg
Materials of Construction:
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Paper cone edge
Dustcap Composition Solid composition felt dust cap

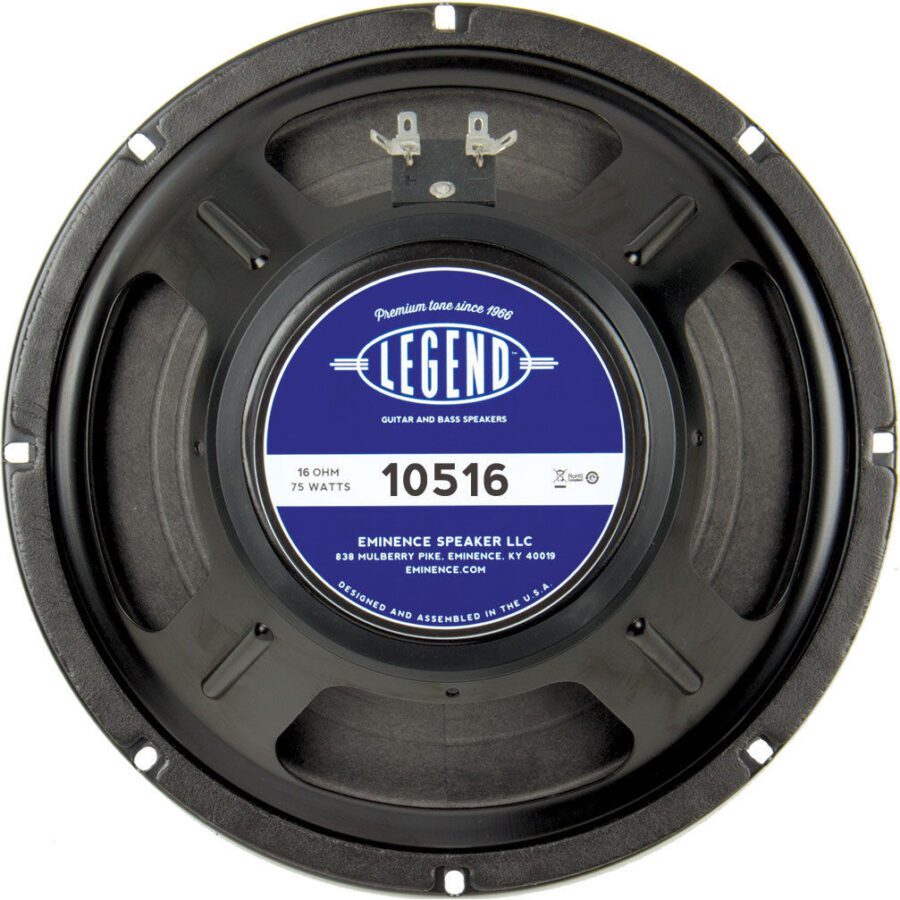

LEGEND 10516 Specs:
Nominal Basket Diameter 10″, 254mm
Nominal Impedance* 16 ohms
Power Rating Watts 75W
Music Program
Resonance 96Hz
Usable Frequency Range 100Hz-5.8kHz
Sensitivity*** 100
Magnet Weight 16 oz.
Gap Height 0.25″, 6.35mm
Voice Coil Diameter 1.5″, 38.1mm
Thiele & Small Parameters:
Resonant Frequency (fs) 96Hz
DC Resistance (Re) 10.20
Coil Inductance (Le) 0.64mH
Mechanical Q (Qms) 13.80
Electromagnetic Q (Qes) 1.32
Total Q (Qts) 1.21
Compliance Equivalent Volume (Vas) 21.8 liters / 0.8 cu.ft.
Mechanical Compliance of Suspension (Cms) 0.13mm/N
BL Product (BL) 9.9 T-M Diaphram Mass inc.
Airload (Mms) 21 grams
Efficiency Bandwidth Product (EBP) 73
Maximum Linear Excursion (Xmax) 0.0mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim)
Mounting Information:
Recommended Enclosure
Sealed Acceptable
Vented Acceptable
Overall Diameter 10.11″, 256.8mm
Baffle Hole Diameter 9.13″, 231.8mm
Front Sealing Gasket fitted as standard
Rear Sealing Gasket fitted as standard
Mounting Holes Diameter 0.23″, 5.7mm
Mounting Holes B.C. D. 9.6″, 243.8mm
Depth 4.1″, 104mm
Net Weight 4.3 lbs., 2 kg
Shipping Weight 5.4 lbs., 2.5 kg
Materials of Construction:
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper Cone
Cone Edge Composition Paper cone edge
Dustcap Composition Solid composition felt dust cap
