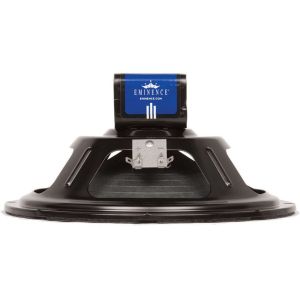

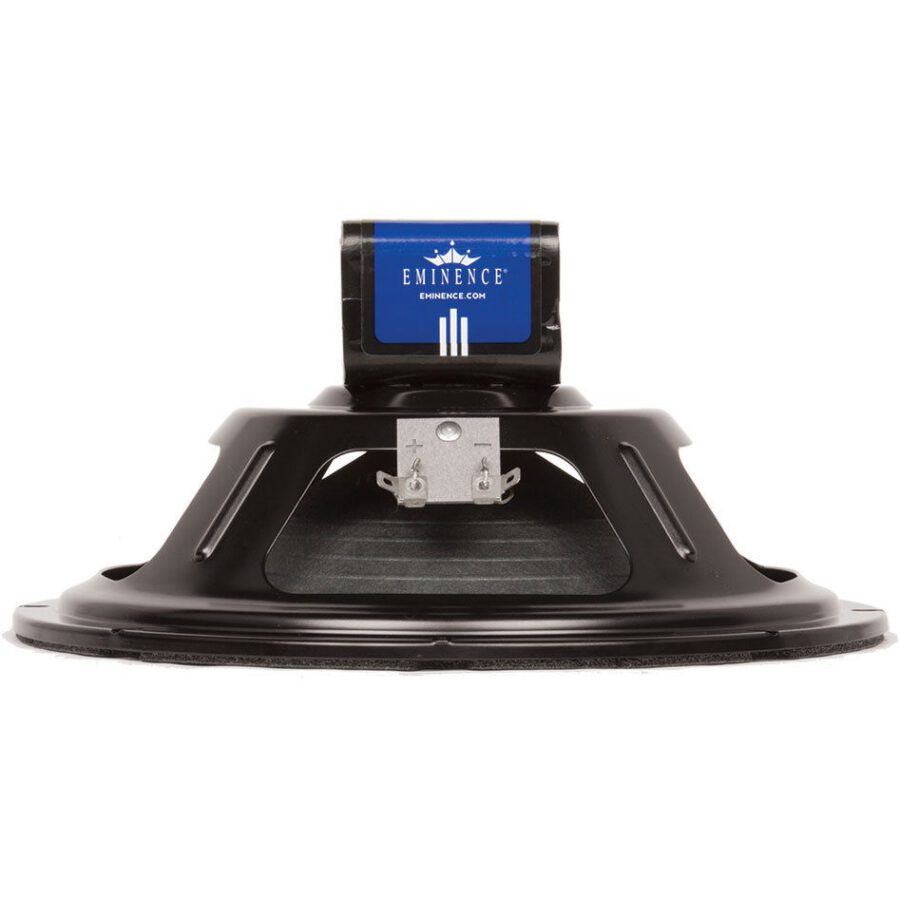

Eminence LEGEND 1028K: 10 inch Alnico Guitar Speaker

Price: $114.99 $104.99

The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.
Ideal vintage alnico Jensen replacement.
35 watts / 100-5kHz / 1″ voice coil
8 ohms
Alnico Magnet

SKU: LEGEND 1028K Categories: , ,

Description

Eminence LEGEND 1028K: 10 inch Alnico Guitar Speaker

The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.

Ideal vintage alnico Jensen replacement.

Click Here to Download PDF Spec Sheet

SPECIFICATION
Nominal Basket Diameter 10″, 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 35 W
Resonance 95 Hz
Usable Frequency Range 100 Hz – 5 kHz
Sensitivity* 97.4 dB
Magnet Weight 6 oz.
Gap Height 0.25″, 6.4 mm
Voice Coil Diameter 1″, 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 95 Hz
DC Resistance (Re) 5.8 Ω
Coil Inductance (Le) 0.51m H
Mechanical Q (Qms) 17.96
Electromagnetic Q (Qes) 1.61
Total Q (Qts) 1.47
Compliance Equivalent Volume (Vas) 31.5 liters / 1.11 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 72.4 cc
Mechanical Compliance of Suspension (Cms) 0.19 mm/N
BL Product (BL) 5.7 T-M
Diaphragm Mass Inc. Airload (MMs) 15 grams
Efficiency Bandwidth Product (EBP) 59
Maximum Linear Excursion (Xmax) 2.1 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
Overall Diameter 10.11″, 256.8 mm
Baffle Hole Diameter 9.13″, 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.22″, 5.6mm
Mounting Holes B.C.D. 9.6″, 243.8mm
Depth 4.8″, 121.9 mm
Net Weight 2.9 lbs, 1.32 kg
Shipping Weight 4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Alnico magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap
