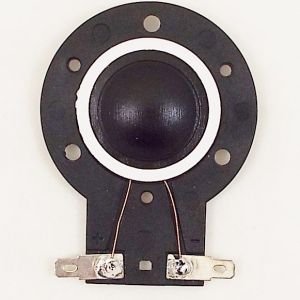

Klipsch MD-127103 Aftermarket Diaphragm


Fits Klipsch K-74-K, K-79-K, K-84-K, K-85-K, K-89-KV, K-100, K-109 and many more.
1″ voice coil / Treated Fabric dome
8 ohm


Klipsch Aftermarket Diaphragm

Klipsch part # was 127103 (discontinued from Klipsch).

Fits Klipsch Horn part#’s: K-71-H, K-72H, K-72-K, K-73, K-74-K (KG4), K-75-K, K-76-K, K-79-K (KLF-30), K-80-K, K-81-K, K-82-K, K-83-K, K-84-K (KG3.5), K-85-K (KG5.5), K-86, K-89-KV, K-97, K-97-KV, K-100 (KLF 10), K-105, K-109 and more.

Klipsch cabinet models: KG2, KG2.2, KG-2.2, KG3.5, KG4, KG4.5, KG5.5, KLF-10, KLF-30, KM-6, KP-250, KV-3, RS-7, FORTE II and more.

Will also fit other makes and models.  Some modification may be needed for the pin or screw holes.

Diaphragm Diameter: 2.25″ (57.15mm)
Voice Coil Diameter: 1″ (25.4mm)
Nominal Impedance: 8 ohms
DC Resistance: 6.0 ohms
Treated Fabric Dome

Weight 0.25 lbs
