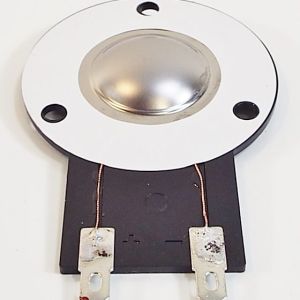

Klipsch Aftermarket Titanium Diaphragm
The titanium dome offers a smoother response than a phenolic, poly or fabric dome.
Good replacement for Klipsch tweeter:
– K-72, K-74, K-75, K-76, K-79, K-83, K-84, K-85, K-88, K-90, K-100, K-119 (RF-5), K-124, KG2, KG2.2, KG3, KG4, KG4.2, KG4.5, KG5.5, KLF 10, KP-301 ii and more.
Also a good replacement for many other Klipsch tweeters. Most of these models you will need to drill out the 3 pin holes on the diaphragm a little bit larger.
– Part # K-152N (1000326) for Series 1 only models: RB-51, RB-61, RB-81, RF-62, RF-81, RF-82, RS-42, RS-52, RS-62.
– Part # K-105 used in model RF-3 and more
Diaphragm Diameter: 2.188″ (55.58mm)
Voice Coil Diameter: 1″ (25.4mm)
Nominal Impedance: 8 ohms
DC Resistance: 6.2 ohms
Dome Material: Titanium
Used in some Klipsch, Pyle and Heppner Horn Tweeters. On some models you will need to drill out the 3 pin holes on the diaphragm a little bit larger.
