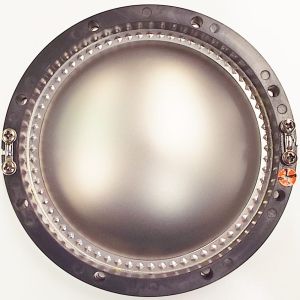

JBL 2440, 2441, 2445 Aftermarket Diaphragm

Price: $59.95

Fits JBL2440, 2441, 2445, 375 and more.
4″ voice coil with non-ribbed titanium dome.
Available in 8 or 16 ohms

Clear
SKU: JBL2445aft Categories: ,

Description

JBL 2440, 2441, 2445 Aftermarket Diaphragm

Available in 8 or 16 ohms

*This is a high quality aftermarket JBL diaphragm that fits many JBL models. It has an edgewound aluminum ribbon voice coil and the dome is titanium. Our diaphragm is rated for the same amount of power and sounds similar to the original JBL 2445 diaphragm.

Specs:
– Overall Diaphragm Diameter: 5″ (127mm)
– Voice Coil Diameter: 3.91″ (99.2mm)
– Nominal Impedance: 8 ohms. DCR is 4.3 ohms just like the original.
– Nominal Impedance: 16 ohms. DCR is 8.5 ohms just like the original.

Here is a list of the driver part #’s:
– 2440, 2441, 2445, 375 and more.

Some early versions have 2 alignment pins on the driver that will not fit on this diaphragm unless you drill the holes for the pins.

We are a JBL factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.
