JBL 2414H, 2414H-1, 2414H-C Aftermarket Diaphragm


Fits 2414H, 2414H-1 & 2414H-C horn driver models.
8 ohms

Categories: ,

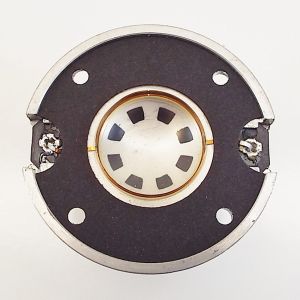

JBL 2414H, 2414H-1, 2414H-C Aftermarket Diaphragm

This is a high quality aftermarket JBL diaphragm that sounds similar the original JBL.

– Outside Diameter: 2.31″ (58.67mm)
– Voice Coil Diameter: .98″ (24.8mm)
– Throat Size: 1.375″ Thread On
– Nominal Impedance: 8 ohms
– DCR: 4.1 ohms
– Dome Material: Polymer
– Voice Coil: Aluminum Wire

Here is a list of the driver part #’s:
– 2414H, 2414H-1, 2414H-C and more.

Here is the list of some of the cabinet model #’s:
– EON Series: EON 210P, EON 305, EON 315, EON 510, EON 515, EON 515XT, EON 610, EON 612, EON 615
– JRX Series: JRX 212, JRX215, JRX 225
– PRX Series: PRX412M, PRX415M, PRX425, PRX635

We are a JBL factory authorized service center and use this part frequently. No soldering needed. Any questions, just let us know.

Weight 0.5 lbs
