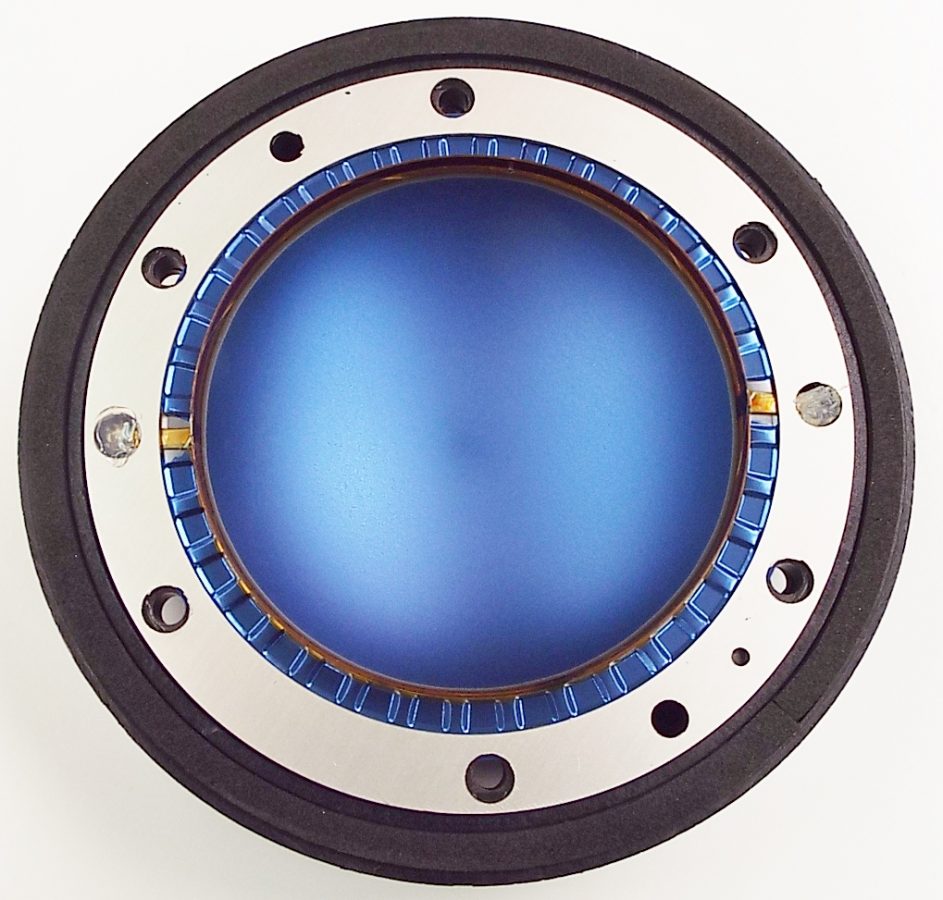

EV Electro Voice 84233XX 16 ohm Aftermarket Diaphragm
Price is for (1) one diaphragm. If you need more than one, just change the quantity. This is a high quality aftermarket diaphragm that fits many Electro Voice models. Our diaphragm comes with a foam gasket that is essential for proper sealing. Many others that are selling similar aftermarket diaphragms do not have gaskets. If you need the 8 ohm diaphragm see our other EV diaphragms.
Overall Diameter: 5″ (127 mm)
Voice Coil Diameter: 3″ (76.2 mm) Edgewound
Diaphragm Material: Titanium Diaphragm
Height: 15.2 mm
Nominal Impedance: 16 ohms
DCR: 11.5 ohms
Here is a list of the driver part #’s:
– DH5-16SYS, DH5-16WPX, DH6-16, DH7-16, N/DYM5-16, N/DYM5-16/2, ND5A-16, ND6-16, ND6A-16 and more.
Here is the list of some of the cabinet model #’s:
– PLASMA P1, VARIPLEX EX, VARIPLEX XL, XCN, XF, XFIL, XFIL-2, XI-1122/85F, XI-1123/106F, XI-1123A/106F, XI-1152, XI-1153, XI-1183, XI-2122/42F, XI-2123, XI-2153, XI-2183, XLC-127 DVX, XLCi-127 DVX, XLC-127+, XLCi-127+, XLCI907DVX, XN, XVLS, XVLT, XW12, XW12A, XW15, XW15A and more.
We are an EV factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.
