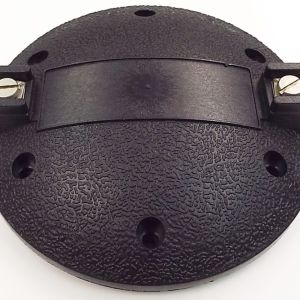

Electro Voice 81320 81320XX 16 ohm Aftermarket Diaphragm
Price is for (1) one diaphragm. If you need more than one, just change the quantity. This is a high quality aftermarket diaphragm that fits many Electro Voice models. If you need the 8 ohm diaphragm see our other EV diaphragms. Our diaphragm comes with a foam gasket that is essential for proper sealing. Many others that are selling similar aftermarket diaphragms do not have gaskets.
– Overall Diameter: 5″ (127 mm)
– Voice Coil Diameter: 3″ (76.2 mm) Edgewound
– Diaphragm Material: Titanium
– Diaphragm Height: 15.2 mm
– Nominal Impedance: 16 ohms
– DCR: 11.5 ohms
Here is a list of the driver part #’s:
– DH1A-16, DH1A-MT-16, DH1AMT-16WP, DH2012-16, N/DYM-1-16, N/DYM-1-MT-16, ND6X-16 and many more
Here is the list of some of the cabinet model #’s:
– MTH-2/64, MTH-2/94, MTH-2.5/22, MTH-2.5/42, MTH-2.5/64, MTH-2.5/94, MTS-1 and more
We are an EV factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.
