EV 81514xx OEM Diaphragm

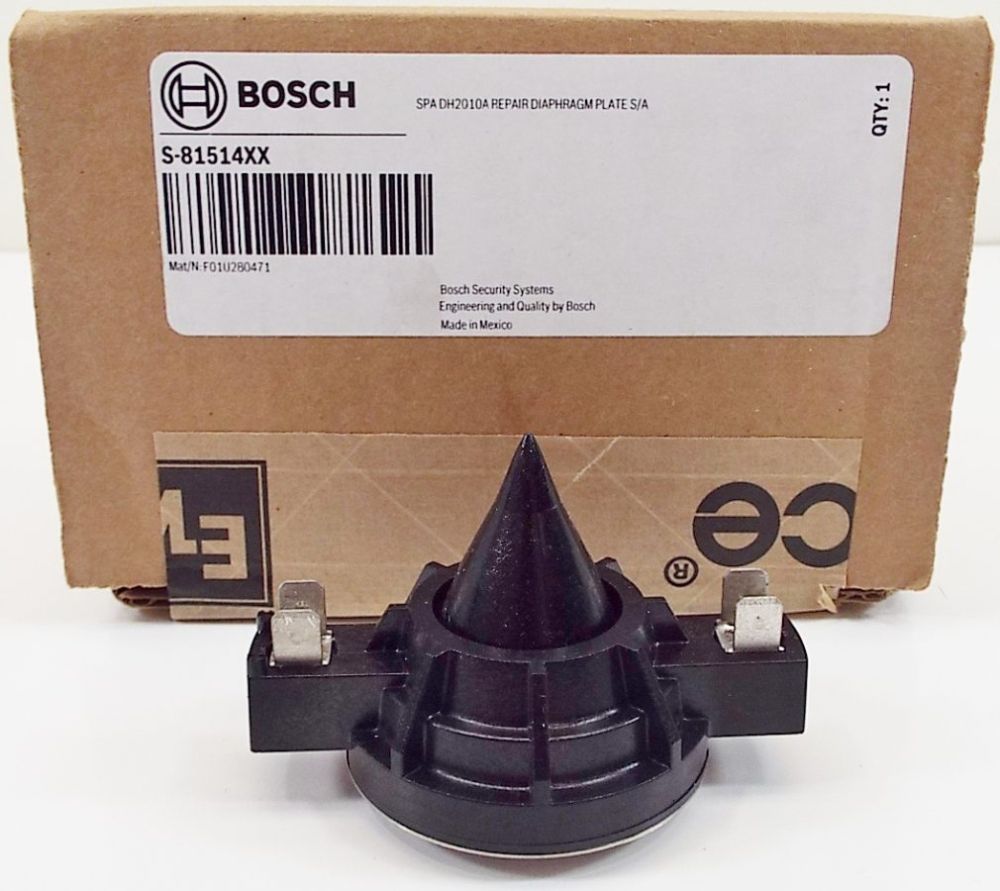

This is an EV factory original diaphragm that fits many Electro Voice models. EV redesigned this diaphragm years ago, so if you have an older model it may look slightly different than our picture of the new 81514XX diaphragm.
Impedance: 8 ohms
DCR: 5.0 ohms
Voice Coil Diameter: 1.25″
Here is a list of some of the part #’s:
– DH2001, DH2005, DH 2010, DH2010A, DH3 (some models like DH3-B)
Here is the list of some of the cabinet model #’s:
– Eliminator models, ETX-10P, ETX-12P, ETX-15P, ETX-35P, EVA2082S, EVI12, EVI15, EVI28, FM1202ER, FM1502ER, Force, Force E, Force I, Force I E, FR15-2, Gladiator G115, High Q, S12, S12-E, S15, S15-E, S15-M, S15M-E, S-122, S-152, S-1202ER, S-1503ER, S-1803ER, SA152, SH-1502ER, SH-1512ER, SL8.2 Cinema, SL12 models, SL15-2H, SX80 models, SX100 models, SX200 models, SX250, SX300 models, SX325, SX500 (some models), SXA100, SXA250, T15i, T22, T22+, T52, T52+, T53, T55+, T351, TX 1122 models, TX 1152 models, XI-1082, ZXA1, ZX1, ZX1i, ZX4 and more.
We are an EV factory authorized service center and use this part frequently. No soldering needed and the diaphragm is self centering for an easy install. Any questions, just let us know.
