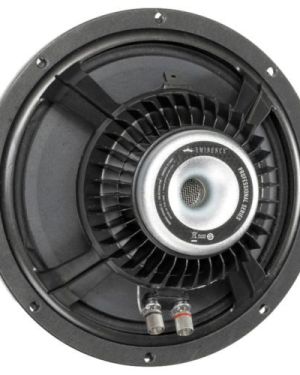

Eminence RAMROD: 10 inch Guitar Speaker
The Eminence Ramrod guitar speaker takes your best licks and drives them home. Very loud and gutsy, with meaty tone. The highs really sing with nice, clear overtones.
Click Here to Download PDF Spec Sheet
| SPECIFICATION | |
| Nominal Basket Diameter | 10″, 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 75 W |
| Resonance | 101 Hz |
| Usable Frequency Range | 80 Hz – 4 kHz |
| Sensitivity* | 100.2 dB |
| Magnet Weight | 30 oz. |
| Gap Height | 0.312″, 7.9 mm |
| Voice Coil Diameter | 1.5″, 38 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 101 Hz |
| DC Resistance (Re) | 7.3 Ω |
| Coil Inductance (Le) | 0.39m H |
| Mechanical Q (Qms) | 10.8 |
| Electromagnetic Q (Qes) | 0.68 |
| Total Q (Qts) | 0.64 |
| Compliance Equivalent Volume (Vas) | 24.6 liters / 0.87 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 17.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
| BL Product (BL) | 11.5 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 19 grams |
| Efficiency Bandwidth Product (EBP) | 149 |
| Maximum Linear Excursion (Xmax) | 0.48 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.11″, 256.8 mm |
| Baffle Hole Diameter | 9.13″, 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23″, 5.8mm |
| Mounting Holes B.C.D. | 9.6″, 243.8mm |
| Depth | 4.3″, 109.2 mm |
| Net Weight | 6.4 lbs, 2.9 kg |
| Shipping Weight | 8.3 lbs, 3.76 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
